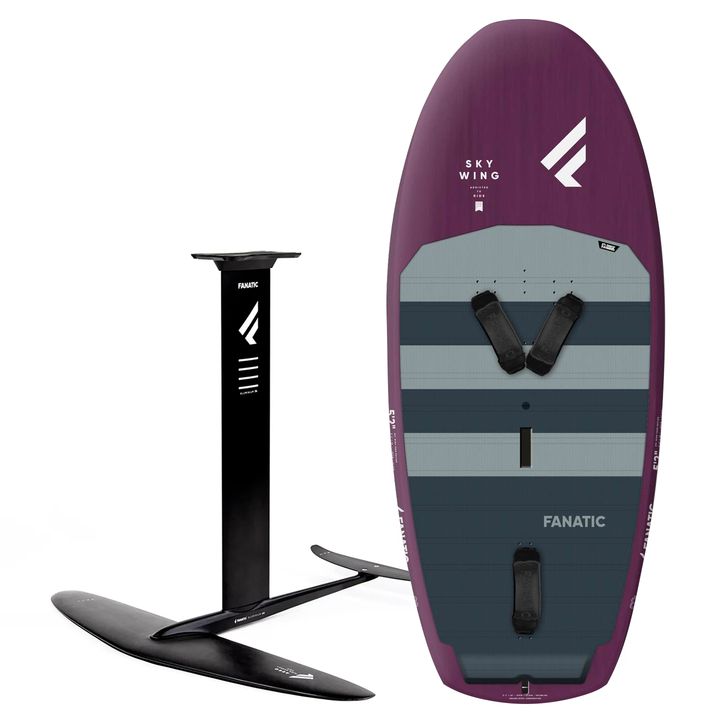

Fanatic Sky Wing Aero HA AL Foil Package 2023
IN A NUTSHELL...
%20(2).png)
Design details
WING FOILING
SKU: 13220-1128
SIZES: 4'6" / 4'7" / 5'0" / 5'2" / 5'4" / 5'6" / 5'8" / 6'3
If you thought the previous Sky Wing range was leading the way in Wing Foiling – try one of these hot new shapes and you’ll be impressed how much of a change a board can make.
FEATURES
NEW SHAPES
9 new shapes for all riders and conditions
ROCKER LINE
Optimized rocker line and hard release edges for maximum glide and earliest take-off possible (sizes 4’8” and bigger)
BOTTOM SHAPE
Clean bottom contours with slightly rolled Vee in the nose section for uninterrupted touch-downs (sizes 4’8” and bigger)
FOOTSTRAP OPTIONS
Additional footstrap inserts for double front strap, single diagonal front strap or new straight single front strap
STABILITY
Double screw inserts for back strap
PULLED IN NOSE
Pulled in nose and tail sections to reduce swing weight and avoid catching in tight turns and on the wave
RECESSED DECK
Recessed deck shape for comfort, control and a direct connection with the foil
DECK PAD
Full deck pad with tail kicker for grip, comfort and support behind your back foot during starts
CENTER LINE BUMPER
Center line bumper on sizes 5‘6“ and bigger
COMFORT
Carrying handles on deck and bottom for easy transport with or without foil mounted
VEC
Lightweight Vacuum Epoxy Construction (VEC) with optimized layup and significantly reduced weight compared to previous models
SIZES 4’6” / 4’7” FOR PRONE / ADVANCED WING
The two smallest shapes of 4’6” and 4’7” being dedicated Prone/Wing advanced combo boards, with low volume, more radical bottom contours and all features needed to push the limits.
TECHNOLOGY
VEC – VACUUM EPOXY CONSTRUCTION
Our Vacuum Epoxy Construction comes in a complex multi-step vacuum process with reinforcement patches in key areas such as boxes, centre spine and a full bamboo patch in the entire stance area. The light yet strong construction comes with a hand sanded finish adding to the unique custom appeal of this technology. For 2023 we refined this layup with a lighter core and additional reinforcements in key areas for a strong construction with significantly lower weight.
Tech specs
| Board | 4'6 | 4'7" | 4'8 | 5' | 5'2 | 5'4 | 5'6 | 5'8 | 6'3 |
| Volume (Liters) | 35 | 45 | 60 | 75 | 85 | 95 | 105 | 125 | 140 |
| Width (inches) | 20" | 22" | 22" | 24" | 25" | 26" | 27" | 28" | 30" |

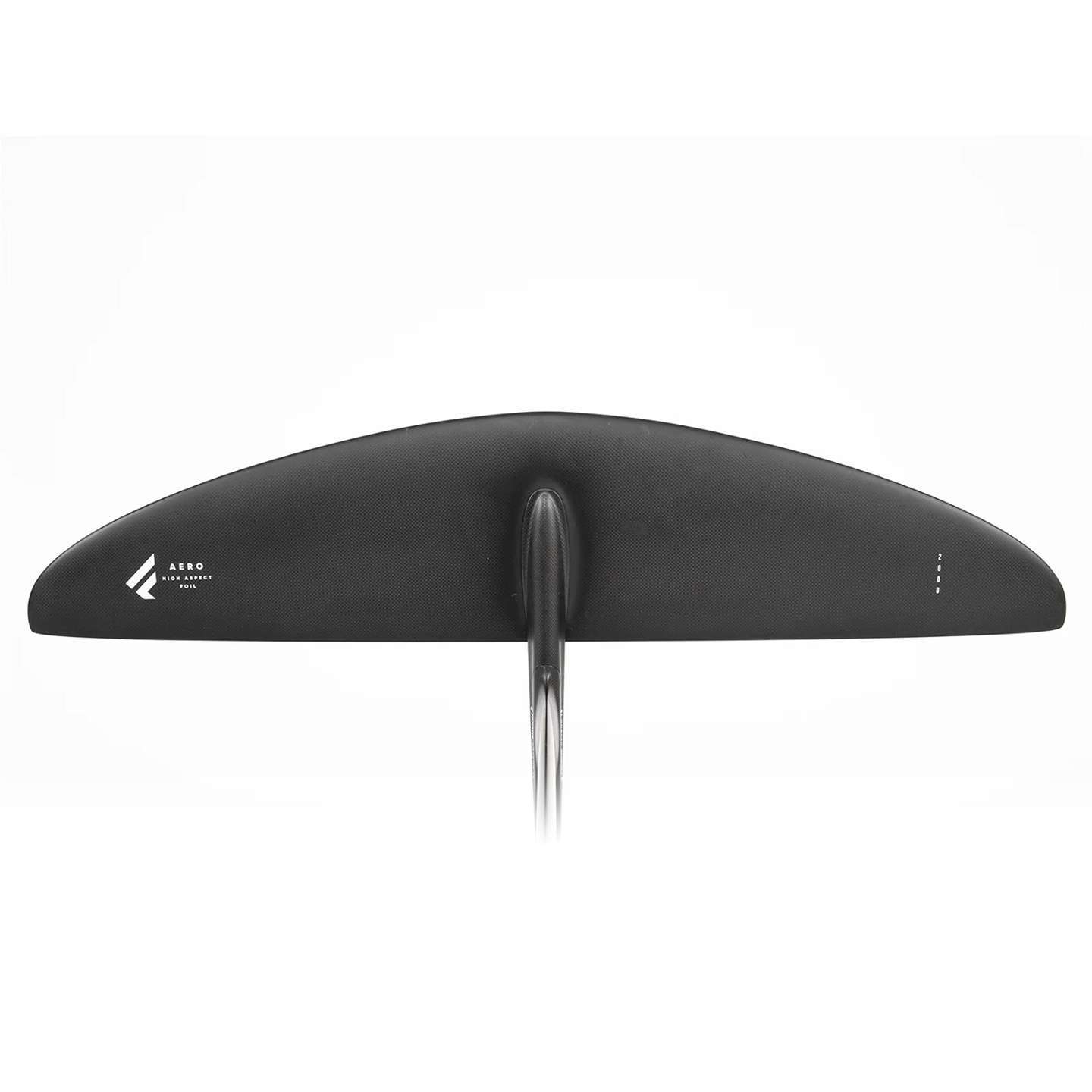

AERO HIGH ASPECT AL 3.0 TECH SPECS
| Foil | FOIL SET CARBON AERO HIGH ASPECT 1250 | FOIL SET CARBON AERO HIGH ASPECT 1500 | FOIL SET CARBON AERO HIGH ASPECT 1750 | FOIL SET CARBON AERO HIGH ASPECT 2000 |
| FRONT WING SIZE CM² | 1250 CM² | 1500 CM² | 1750 CM² | 2000 CM² |
| BACK WING SIZE CM² | 250 CM² | 250 CM² | 300 CM² | 300 CM² |
| FRONT WING SPAN | 90 CM | 95 cm | 100 cm | 110 cm |
| FRONT WING ASPECT RATIO | 6.5 | 6.0 | 5.7 | 5.9 |
| FUSELAGE OPTIONS | 68 cm / 78 cm (Wing / SUP / Prone) 90 cm (Windsurf) | 68 cm / 78 cm (Wing / SUP / Prone) 90 cm (Windsurf) | 68 cm / 78 cm (Wing / SUP / Prone) 90 cm (Windsurf) | 68 cm / 78 cm (Wing / SUP / Prone) 90 cm (Windsurf) |
| MAST OPTIONS | 60 cm / 75 cm / 82 cm / 90 cm / 105cm | 60 cm / 75 cm / 82 cm / 90 cm / 105cm | 60 cm / 75 cm / 82 cm / 90 cm / 105cm | 60 cm / 75 cm / 82 cm / 90 cm / 105cm |
| MAST MOUNTING | TRACK FOIL MOUNT | TRACK FOIL MOUNT | TRACK FOIL MOUNT | TRACK FOIL MOUNT |
| FRONT WING SCREWS | M8x25 Torx | M8x30 Torx | M8x30 Torx | M8x35 Torx |
| BACK WING SCREWS | M6x20 Torx | M6x20 Torx | M6x20 Torx | M6x20 Torx |
ARTICLE NUMBER 13210-3510 (MAST & FUSELAGE SET) 13210-3544 (WING SET)
