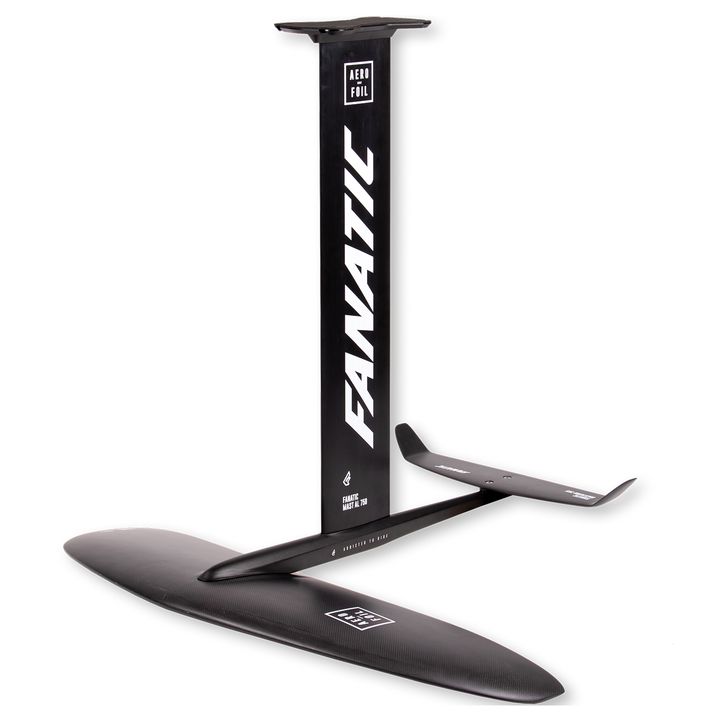

Fanatic Aero 2000 Foil 2021

ARTICLE NUMBER 13200-3510 (WING SET 2000/365) / 13210-3541 (MAST & FUSELAGE SET 750/780) *NOTE, WINGS ARE DELIVERED WITH INDIVIDUAL COVERS, MAST & FUSELAGE SET COMES WITH FOIL BAG

Aero Foil 2000 Fuselage (Allround Prone Surf and SUP): Fanatic's new all-rounder is the combination of 2000 front wing / 365 back wing. Plenty of lift, manoeuvrability and a good pump will cater for most riders between 70-100kg in small to medium size waves for prone surf and SUP surf foiling, as well as SUP Downwinders for the lighter and medium size riders

FEATURES

• Carbon front and back wings with 30° layup for maximum performance with direct flex response and minimal weight

• Formula 1 aluminium fusion technology mast – made in Germany – with special profile and increased chord length for 30% higher stiffness compared to other Alu masts

• Alu Fuselage with extra large mounting area for bulletproof connections and maximum load spread

• Helicoil-threads in mast and fuselage for longevity and maximum strength connections

• Glued and screwed connection of mast and base plate for extra rigid connection and maximum durability

• Wings and fuselages fully interchangeable for upgrades and tuning according to conditions and rider level

• Fuselage - Wing connection without pockets – not getting stuck, no wearing out

• Individual tuning through supplied wedges – changes angle of attack

• 4-way track system base plate

• Aero Foil Bag including covers for wings, mast and fuselage for safe transport of your foil and all accessories


TECHNOLOGY

WINGS

• 30° Layup orientation for maximum bending and torsional stiffness

• Maximum performance

• Light weight construction

• Front Wing with molded foam core and solid Carbon centre piece for bullet proof connections

• Back Wing solid UD Carbon


MAST

• High grade Aluminium mast made in Germany

• Wider chord length and special profile

• About 30% stiffer than other Aluminium masts

• "Feels like Carbon"

• No loss of power when pumping


MAST > BASE PLATE CONNECTION

• Formula 1 Aluminium Fusion Technology - Made in Germany

• Glued AND screwed connection of mast and base

• Ultra rigid

• Highly durable

• Feels like one piece


SCREWED CONNECTIONS

• Stainless Steel Heli Coil inserts in all screwed connections

• Takes 1.2 tons of load per M8 screw

• Bulletproof

• No corrosion between screw and thread

• Heli Coils Replacable


FRONT WING CONNECTION

• Large mounting area for maximum load spread

• No wearing out

• Not getting stuck - No Hammer needed!

• Recess in front wings for neat fit
