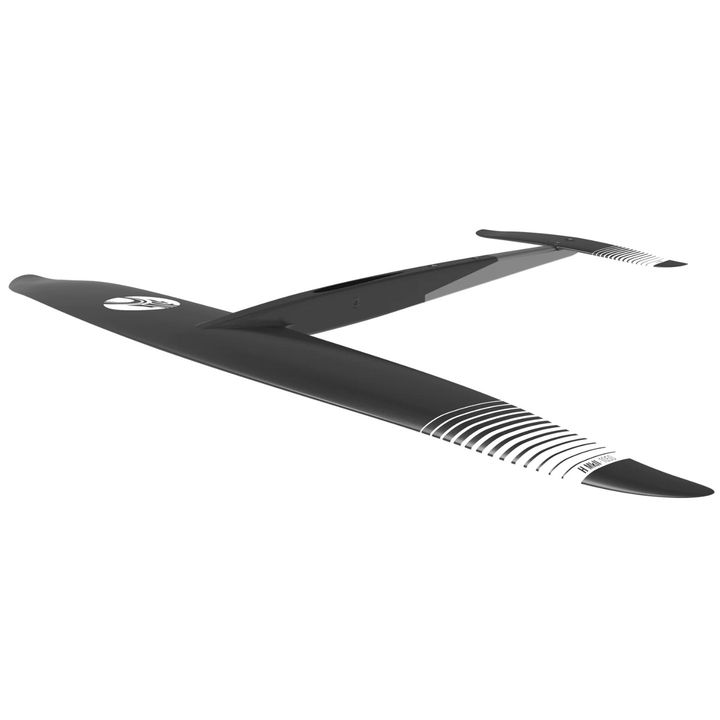

Cabrinha Fusion X-Series MKII Foil
IN A NUTSHELL...
The Cabrinha X-Series MKII foils give early lift, high top speeds with huge amounts of control.
Design details
Sizes: X700 | X930 | X1240 | X1650 | X2100
FREERIDE
Early lift, but with a high top speed has been achieved, and through refined tip shape and profile, you are able to break the tips free, but still be ready to carve into your next turn.
DESIGN PROFILE
Swept LE, Straight TE, Ultra lean efficient profile, moderate anhedral.
- Loose and agile
- All round lean profile
- Refined tip shape
- Tapered fit
- Torsional Stiffness
- Medium AR
- PMI core
- Pre Preg construction
- Modular
H700 - 700cm² | Span - 640mm | AR - 5.85 | Chord - 140mm
H930 - 930cm² | Span - 750mm | AR - 6.05 | Chord - 165mm
H1240 - 1240cm² | Span - 870mm | AR - 6.10 | Chord - 190mm
H1650 - 1650cm² | Span - 1010mm | AR - 6.18 | Chord - 220mm
H2100 - 2100cm² | Span - 1050mm | AR - 6.01 | Chord - 255mm
Tech specs
MASTS
Fusion Carbon Masts - The all-new Hollow Mast system is yet another example of the state of the art foil program from Cab Design Works. It nods to the critical & complete design approach of the team to view every foil component individually with a view to improve stiffness across the entire platform. It implements a bladder molded construction with strategic layering of carbon as far to the outside as possible. This culminates in our stiffest ever mast to front wing connection. This reduction in flex eliminates any lag in the turn and transfers energy while pumping seamlessly through to the front wing.
Fusion Alloy MKII Masts - The Fusion Alloy mast is constructed from extruded aircraft grade aluminum that result in an incredibly rigid & hydrodynamic structure. Helicoil inserts eliminate salt water corrosion around the screw connection points. It seamlessly integrates into all 9cm industry standard foil boxes.
