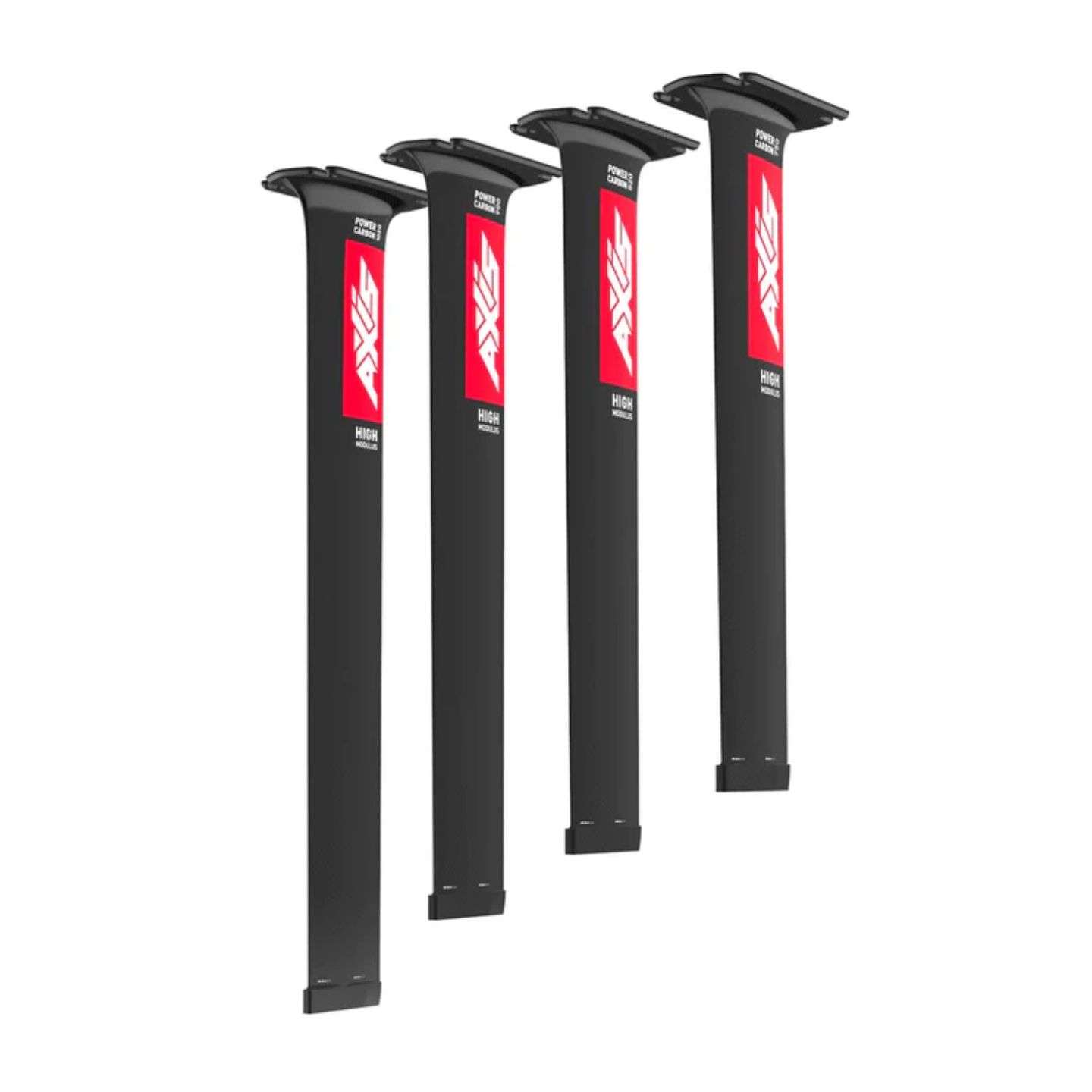

Axis Power Carbon High Modulus Mast

From: £1,186.62

IN A NUTSHELL...

 enters a new realm of control and connection between board and foil.

Delivery information

Design details

AXIS Power Carbon enters a new realm of control and connection between board and foil.

During early ART foil testing, their research team quickly realized that higher aspect ratios and broader foil spans applied more bending and twisting forces to the mast. So while ART foils were a game-changer even on our existing masts, they knew there was still huge untapped potential to be realized.
So began a whole new development project, and we couldn’t be more excited at the result. With a new power profile and carefully considered material selection and placement, AXIS Power Carbon delivers both superior stiffness with next-level strength.
Opting for a one-piece design, we avoided the flow/drag and jointing issues associated with multi-part mast constructions.
Additionally and more importantly, testing proves that maximum loading is concentrated close to the baseplate and this is why the mast tapers thicker at this point to handle the loads. Any joins or two-piece construction at this high load area would destroy the integrity of the mast.

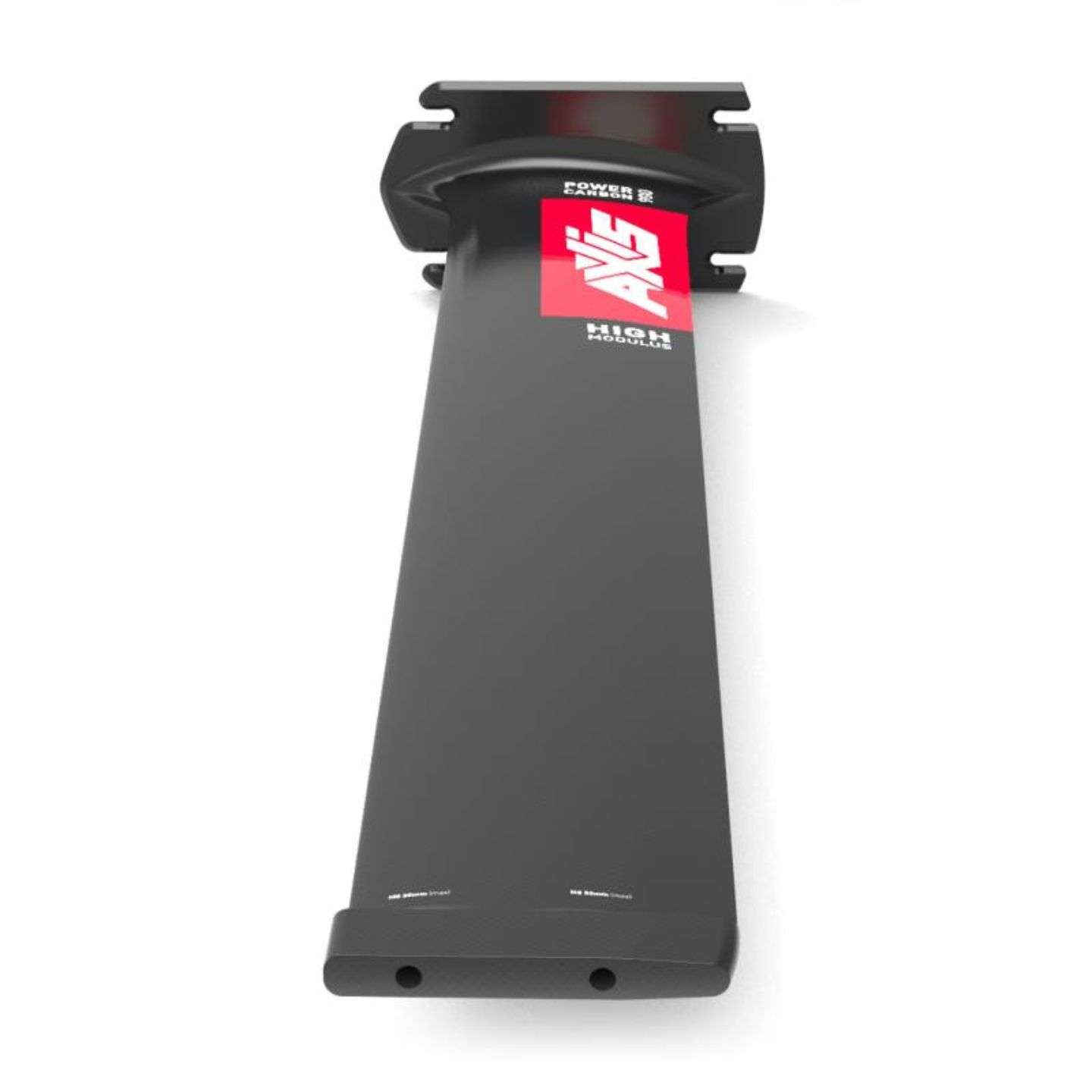

A revised fuselage connection design maximizes the size of the attachment point to achieve a perfect fit to the fuselage reducing any chance of unwanted movement.
The result is a positive connected feel, direct drive, immediate feedback and ultimate control. High aspect foils perform as they should, feel and control enter an entirely new realm.

The new High Modulus Carbon fibre used in our mast layup is considerably stiffer and stronger than the regular carbon fibre used in conventional constructions. Innovative, considered and balanced placement of materials in our proprietary production process paired with rigorous testing has delivered a breathtaking performance leap.
Ride characteristics are so game-changing, that it’s been a struggle to get our team riders to return the prototypes after testing!
Feedback featured claims like ‘a way more positive and connected feel’, ‘immediate feedback’ and ‘ultimate control’.

Tech specs

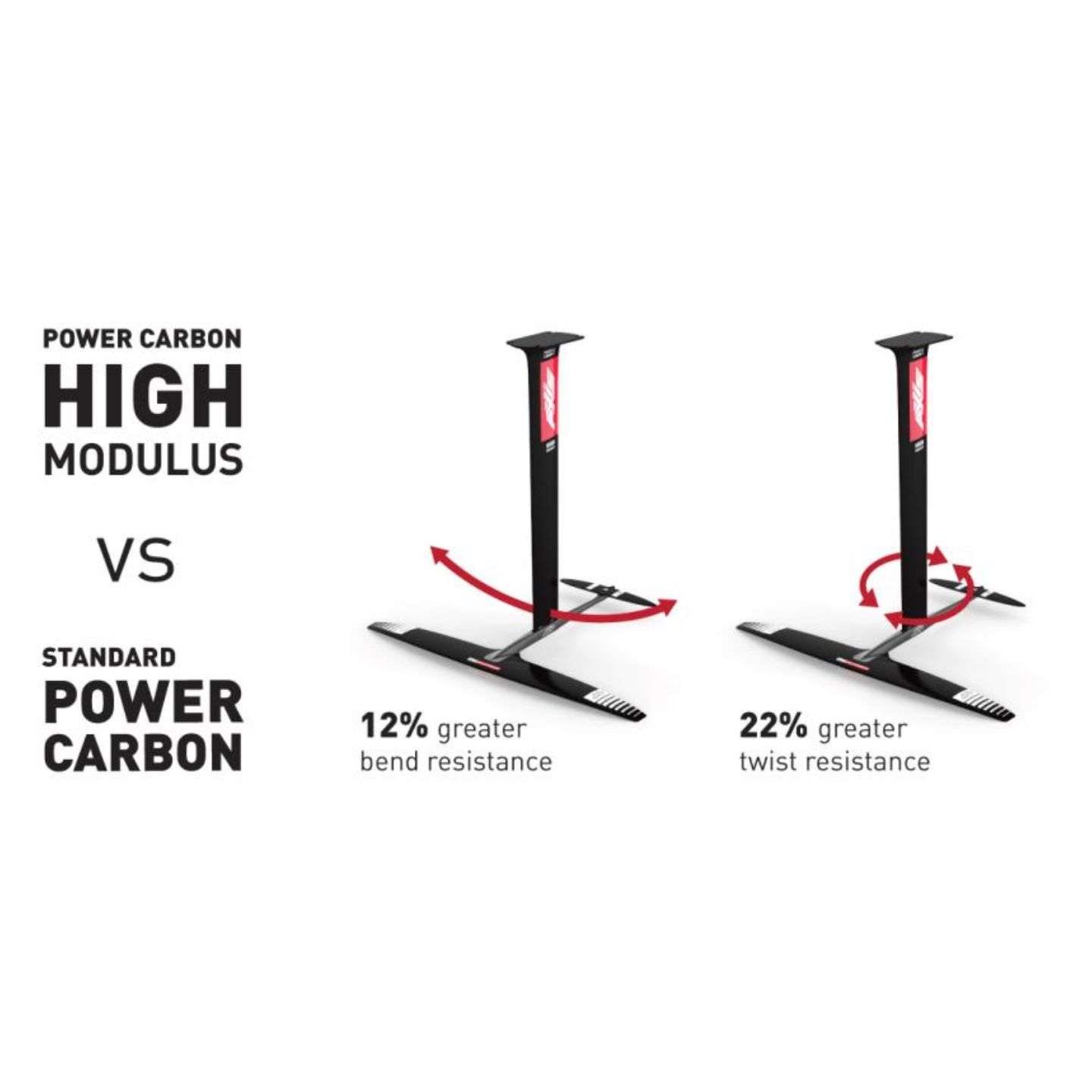

Choose your Power level The new Axis masts are available in two models, the Power Carbon and Power Carbon - High Modulus, the latter providing additional strength and 35% more bend resistance than our industry-leading 19mm aluminium mast. The High Modulus will be the mast of choice for the most discerning rider seeking ultimate performance, and heavier riders using our larger span foils.

With AXIS Power Carbon masts, riders will finally be at one with the foil.

AXIS Power Carbon Masts have a new and greatly improved base connection design. While fully compatible with all existing Red & Black fuselage, a new installation technique/method is required, this involves simply inserting the mast leading edge first into the fuselage opening, then rotating the trailing edge down. Removal is done in reverse, trailing edge rotates out first... super simple!

Remember use only 30mm M8 bolts to attach fuselage to Power Carbon masts
