Axis ART v2 Front Wing
IN A NUTSHELL...
This innovative foil series is designed to bridge the gap between the powerful, smooth carving of the AXIS Spitfire and the low-drag glide and speed of the ART PRO wings.
Design details

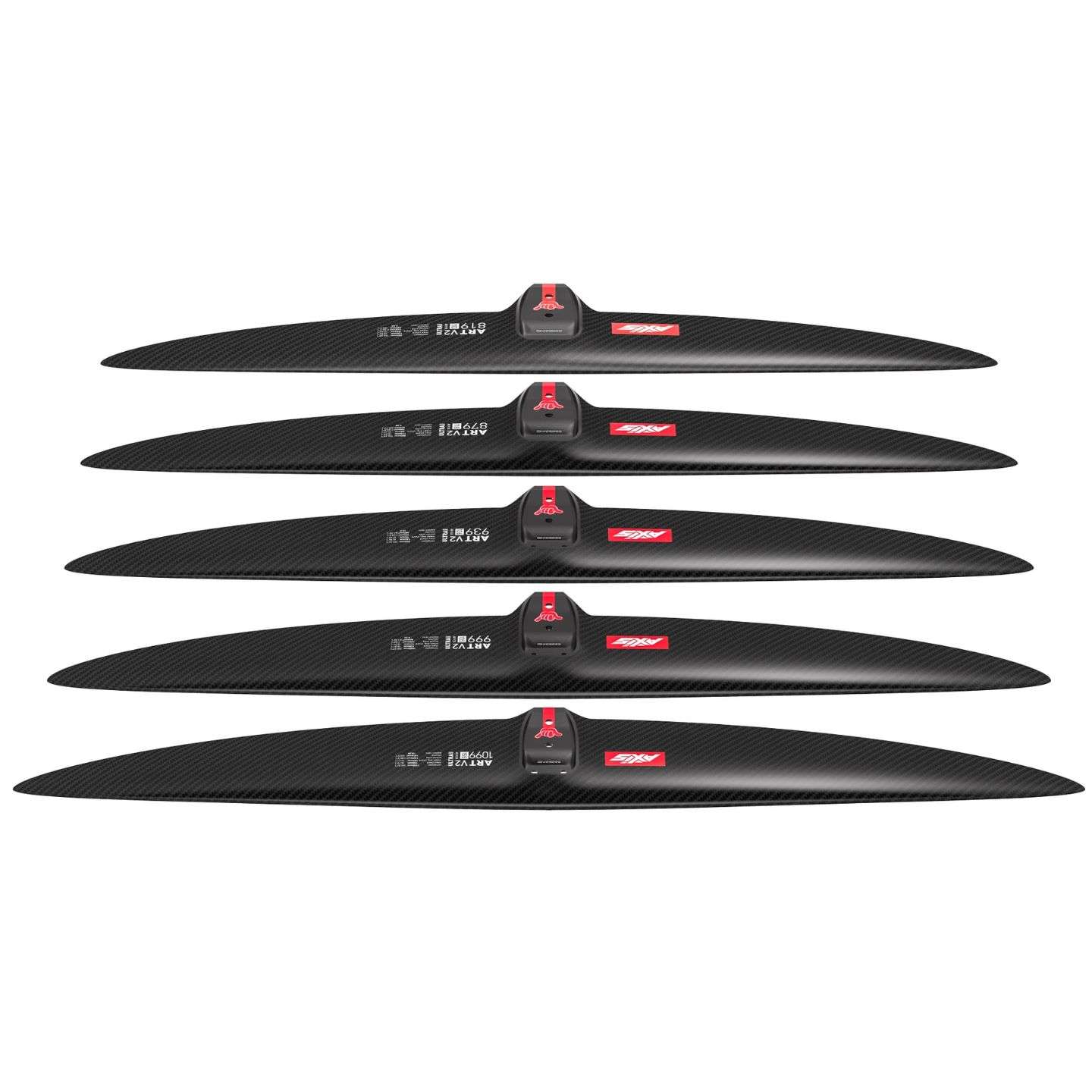

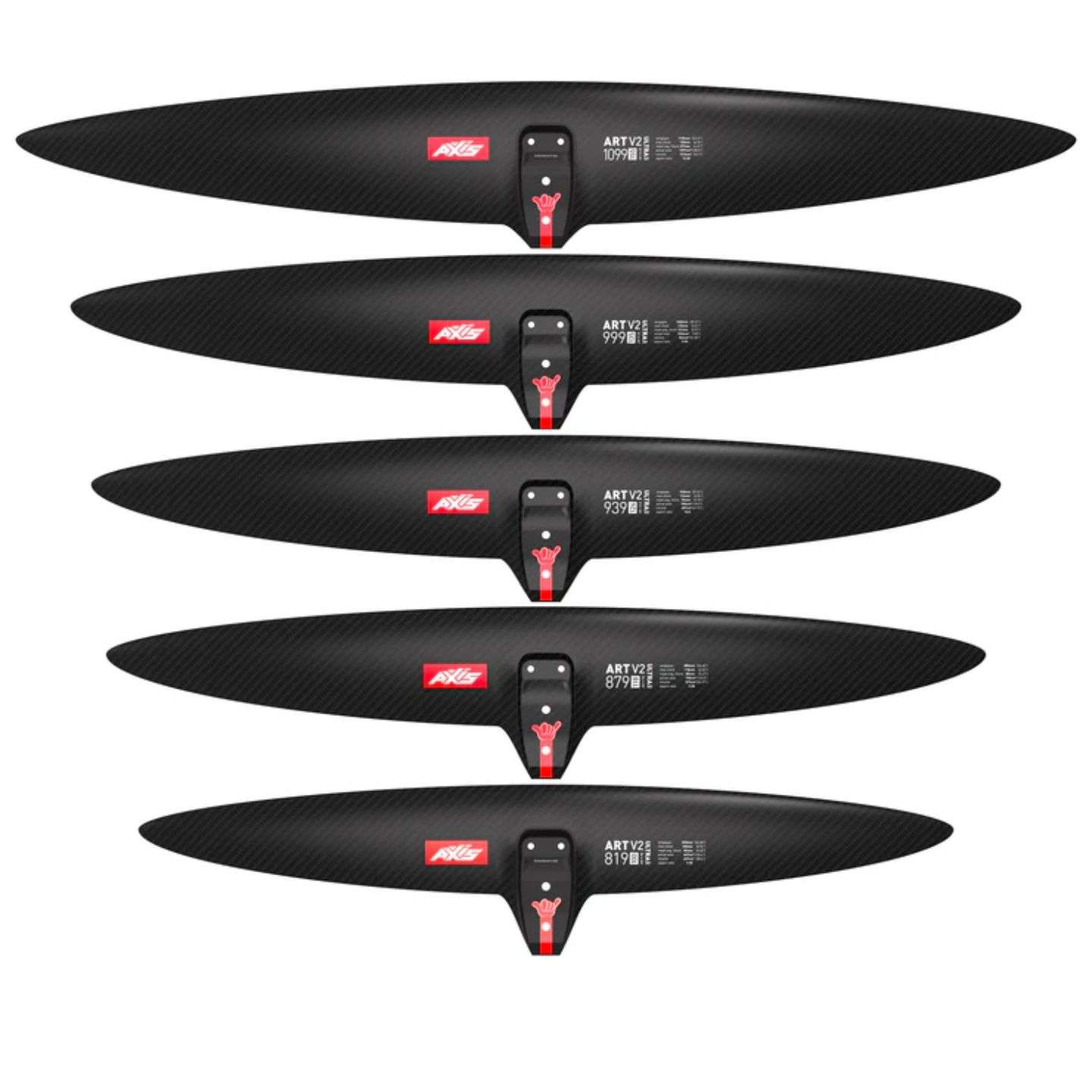

ART v2 - 1099 | 999 | 939 | 879 | 819
Whether you're free riding, wave riding, or seeking efficient cruising, the ART v2 delivers exceptional speed, balance, stability, and smooth carving in any wind or water condition. For freestyle enthusiasts, the ART v2 is reinforced with Ultra High Modulus carbon, offering extra rigidity and strength for advanced maneuvers.
Built with the Spitfire’s versatile DNA, the ART v2 also empowers wing foilers to confidently explore other foiling disciplines like prone, downwind, SUP, FoilDrive (FD), windsurfing, wake foiling, or kiting. While it excels in winging, the ART v2 proves itself as a standout performer across all foiling arenas.
Designed as a High Aspect wing, the ART v2 features an Aspect Ratio of approximately 10 throughout the series, striking a balance between the Spitfire’s 7.5 AR and the ART PRO’s 12+ AR. True to its v2 name, it enhances performance across the board!
Package Includes:
Front Wing and Wing Cover
Only usable on Axis Black and Advanced Black Fuselages
Tech specs
Notes from the Design team
The AXIS ART v2 is a foil that retains great glide and pump due to its span (like an ART PRO), while the reduced area in the tips allows us to retain the looser predictable turning characteristics of a much smaller wing. (similar to the Spitfire).
We achieved that by using a very tapered outline, we reduced the second moment of area for roll, and worked to achieve a perfectly elliptical span-wise lift distribution.
We have strategically reinforced the ART v2 with military-grade Ultra High Modulus carbon in addition to our existing layups creating a stronger connection between the wing and the fuselage, which provides quicker response, better performance and additional strength.
The ART v2 comes with a unique waterproof X-Ply / Mylar material bag with reinforcements, to keep your foil well-protected from impact, and elements.
| Foil | 1099 | 999 | 939 | 879 | 819 |
| Wingspan (mm) | 1099 | 999 | 939 | 879 | 819 |
| Aspect Ratio | 10.08 | 9.90 | 10.0 | 9.98 | 9.98 |
| Surface area (cm²) | 1220 | 1038 | 900 | 790 | 674 |
