North Sonar Foil Freeride Edition 2020

£749.14 ex VAT (USD1,000.10)

The North Sonar Freeride Foil is your ultimate Freeride Foil setup. A forgiving and well-balanced ride, with amazing performance at the top and bottom end speeds. The Sonar Freeride Edition, with 85cm Mast and 850 Performance Freeride Front Wing, holds lift through gybes and tacks without stalling.

Design details

FREERIDE KITE

850 WING + 85 MAST

This well-balanced Foil System allows easy breach recovery and helps progress your foiling experience to the next level. The Sonar Foil System can be mounted to any foil board with a 165x90mm bolt pattern.

INCLUDES:

  • 850 Front Wing
  • Stabilizer
  • 85cm Mast
  • Fuselage
  • Board Adaptor
  • Foil Tool Set
  • Foil Screw Packs A, B, C and D
  • Wing Cover
  • Stabilizer Cover
  • Sonar Travel Bag

FEATURES

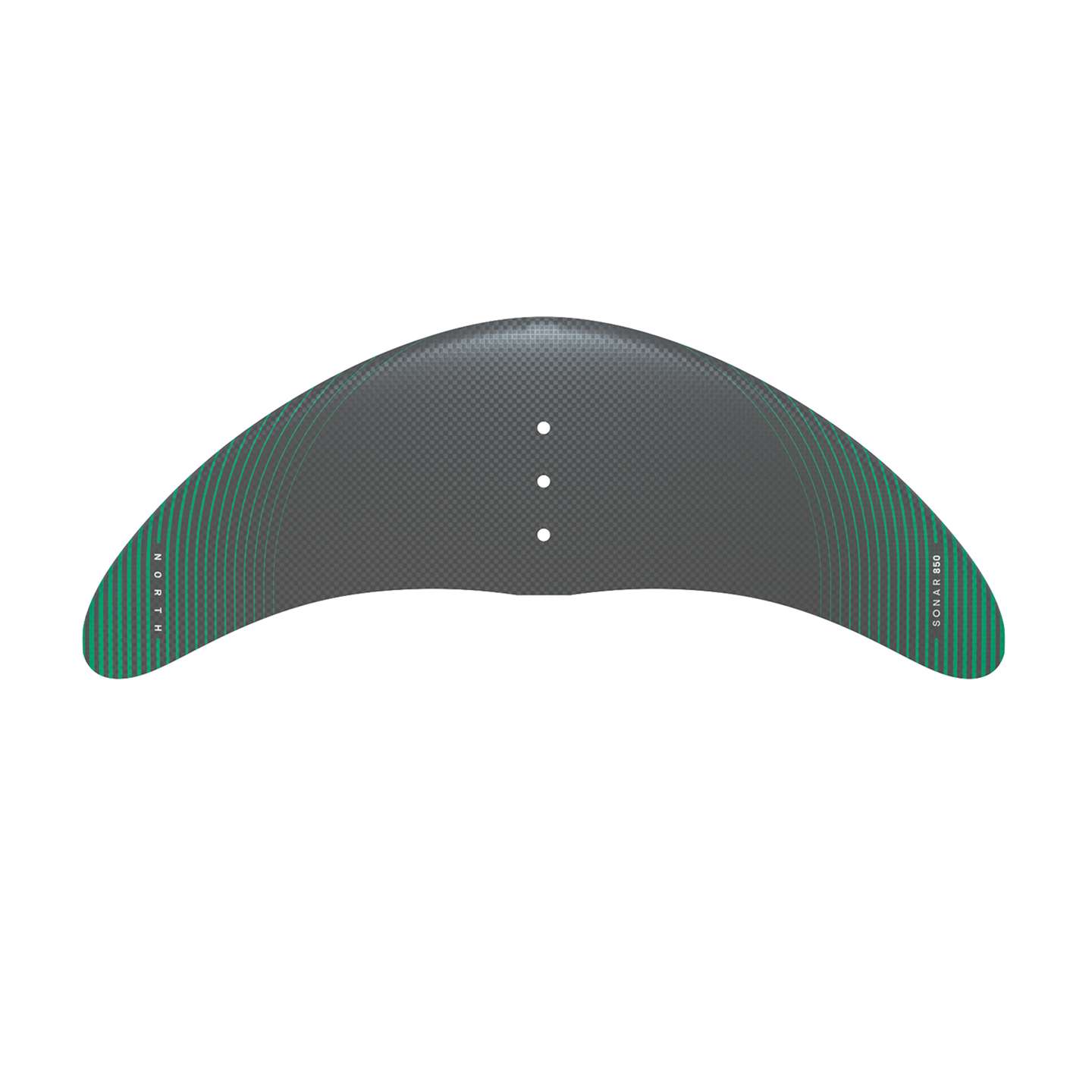

Carbon 850 Front Wing
Lightweight carbon sandwich construction with optimised profile and rounded outline for a playful and smooth ride without losing top speed thrills.

Maximum freeride performance
Carries the lift through all manouevres and lets you step up your foil game with ease.

Anhedral wing profile
With swept back outline allows for a more agile flight mode and roll stability during maneuvres.

Optimised low drag
Foil section allows for thrilling top end speeds combined with unbelievable low stall speed.

Composite rear-wing Stabilizer
In perfect harmony with the Front Wing, our dihedral-shaped rear Stabilizer provides control and riding comfort, allowing fast pivoting turns and easy recovery from surface-breaching.

Breach Recovery
Surface piercing of the Stabilizer is not a problem, as the Front Wing sits deeper in the water and is still fully submerged, giving you that extra time to react and adjust your ride height.

Hydrodynamically-optimized Fuselage
Precisely CNC-machined from 6061-T6 anodised aeronautical-grade aluminium for minimum resistance, with structurally engineered connections for an exceptional strength to weight ratio.

85cm Aluminium Mast
Precisely CNC-machined from 6061-T6 anodised aeronautical-grade aluminium for minimum resistance, with structurally engineered connections for an exceptional strength to weight ratio.

GeoLock
Engineered to last, our unique GeoLock tapered geometry locking system provides a more effective load-bearing connection between the Mast and Fuselage, locking them together, so they feel like one piece. Screws engage the GeoLock while load transfer now takes place over the full cross-section of the mast profile, allowing for a more efficient load transfer and longer-lasting connection.

Board Adaptor
The Sonar Foil System is connected to the board by a lightweight CNC-machined aluminium Board Adaptor with a tapered geometry locking connection that engages with the mast. Fusing Board Adaptor and mast together to build one union for optimum load transfer and a stronger, more direct feeling and steering impulse when foiling.

165x90mm bolt pattern
The Sonar Foil System can be mounted to any foil board with a 165x90mm bolt pattern.
