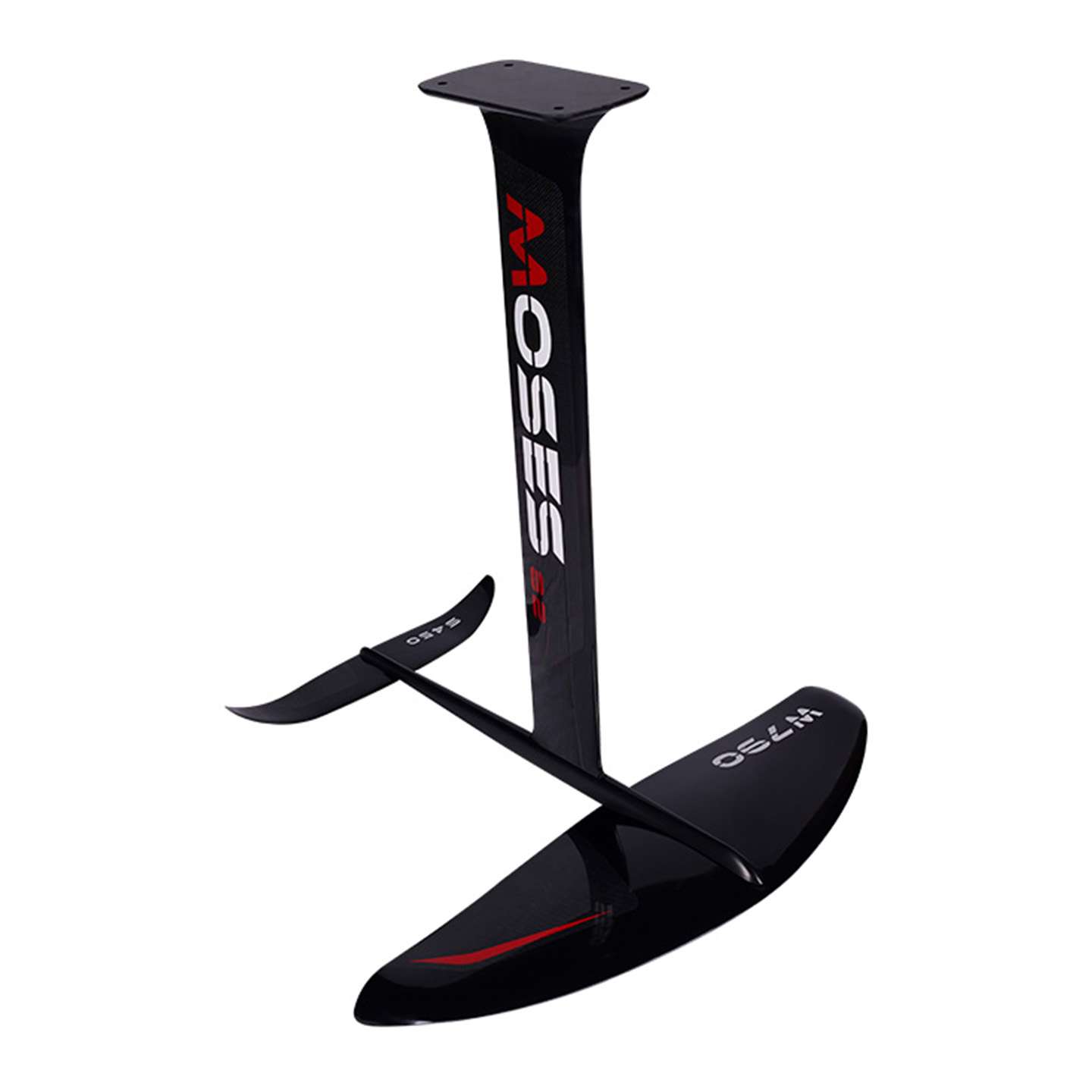

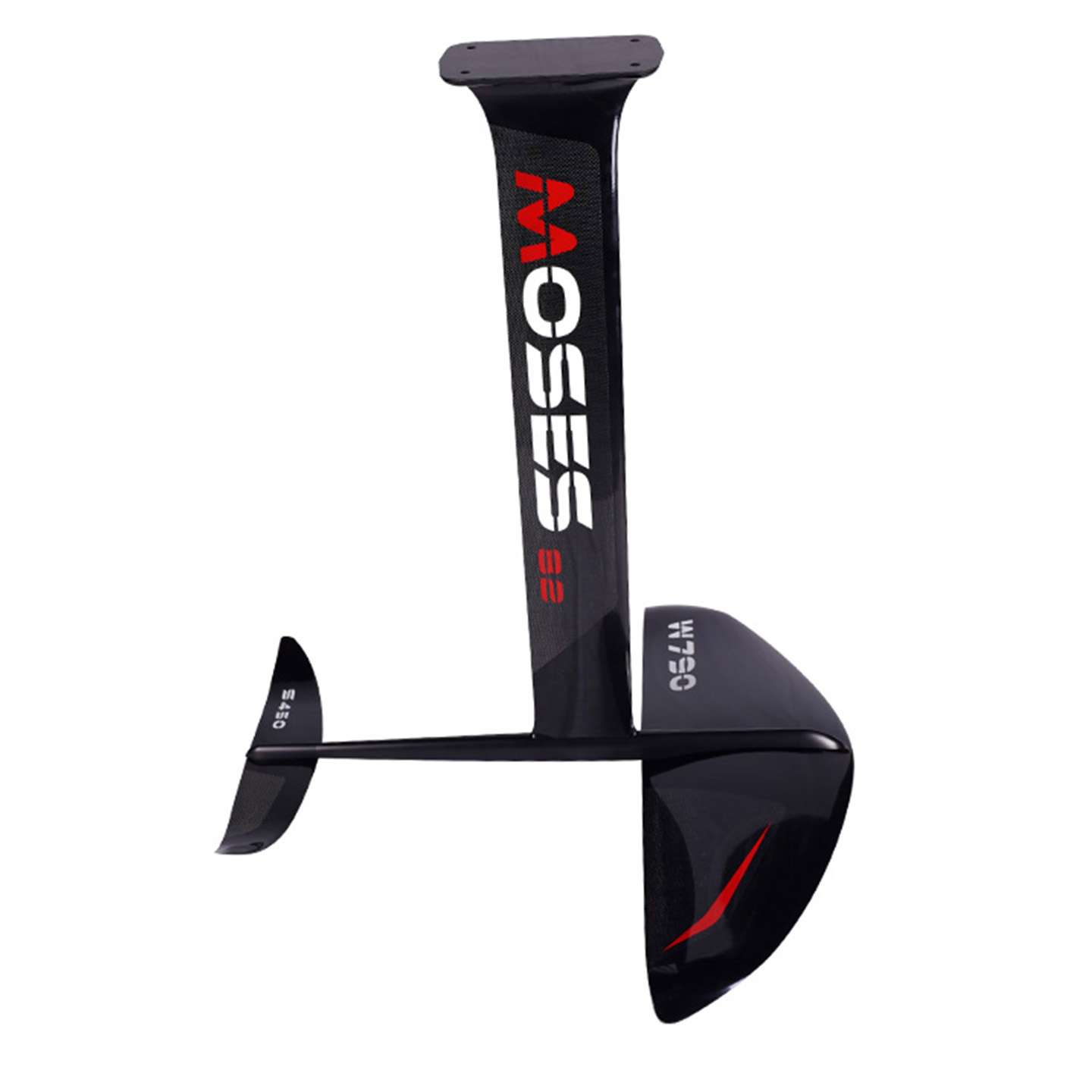

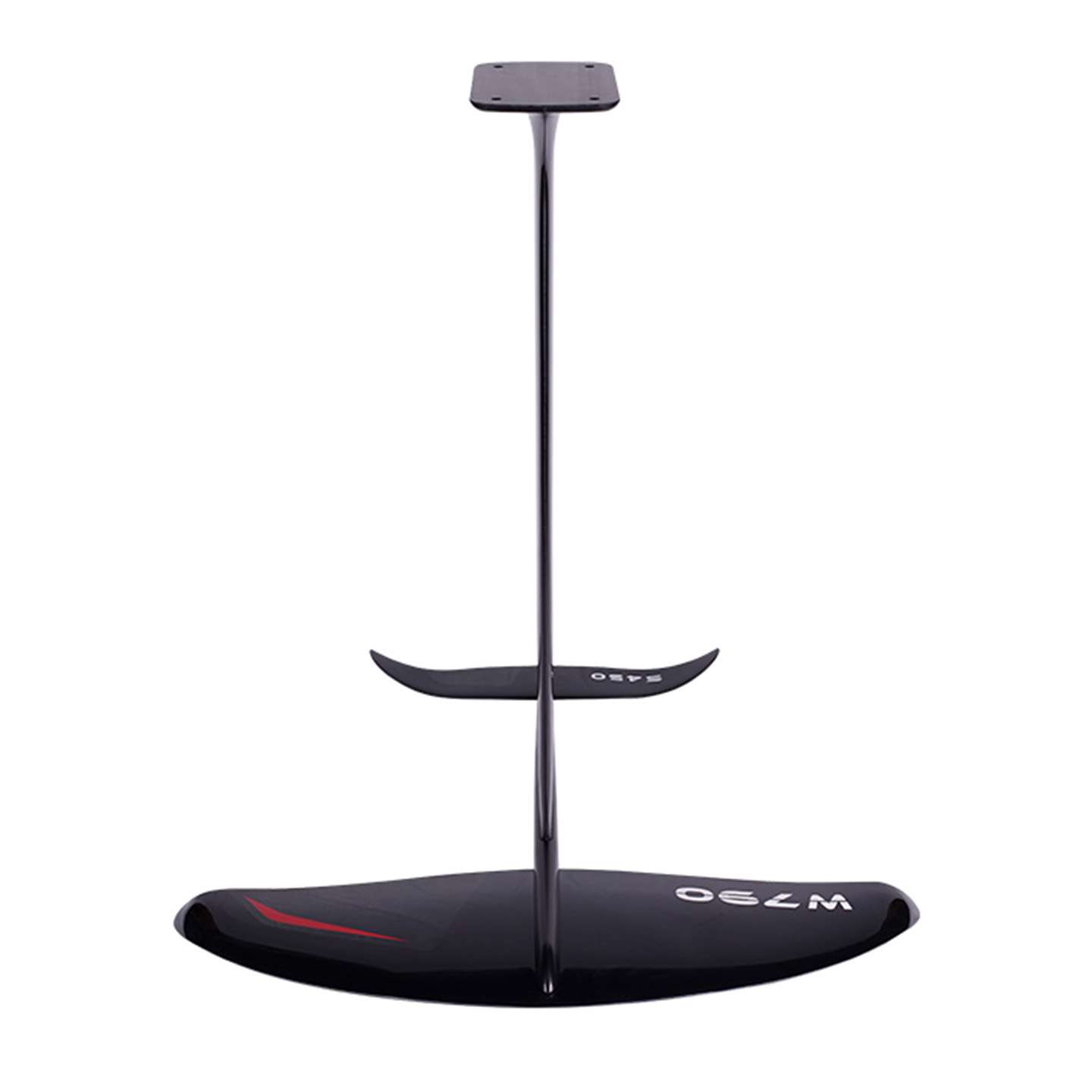

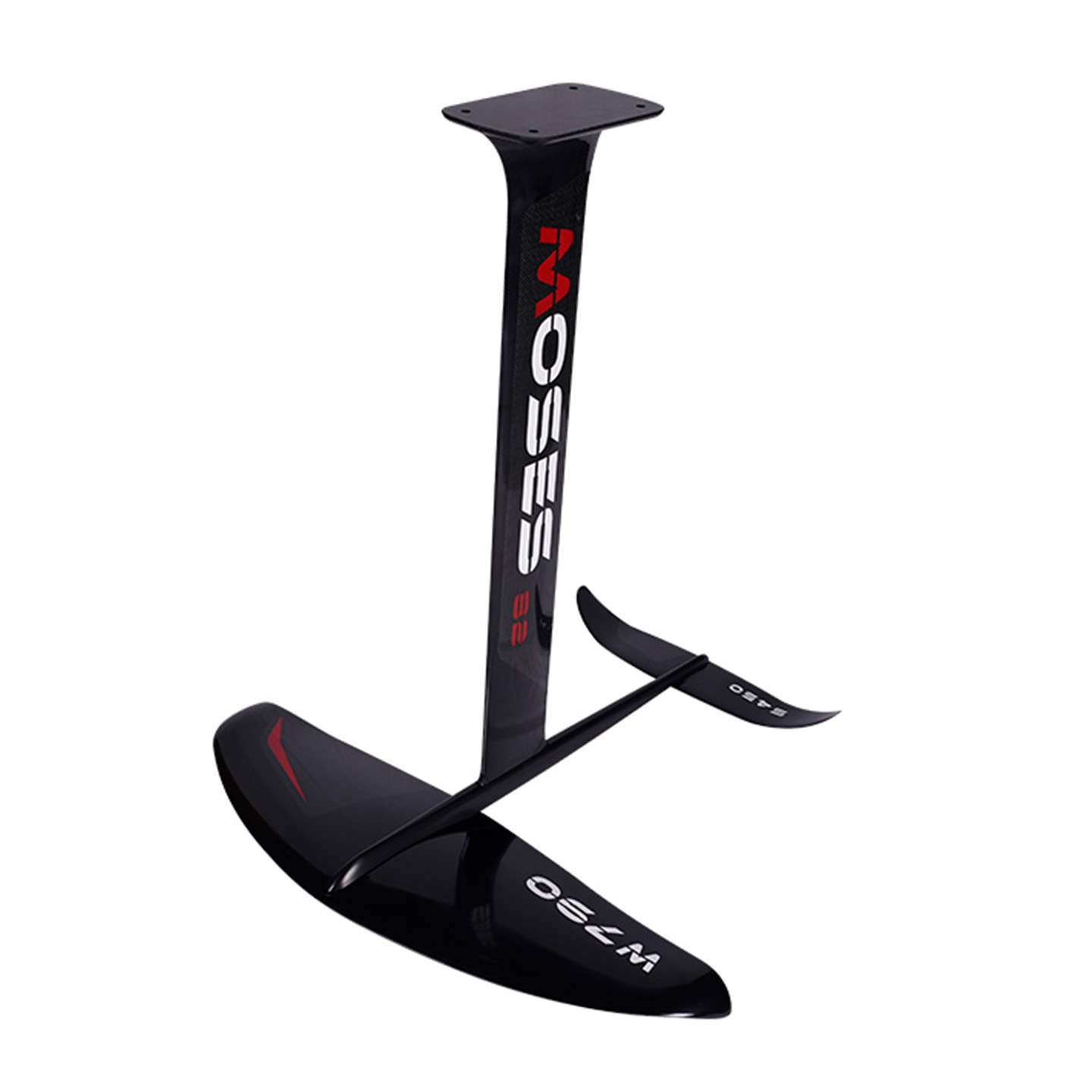

Moses Kit 82 790 Onda Foil 2020
IN A NUTSHELL...
The unique design of this foil allows you to surf small waves and ride back to the line up due too its great pumpability.
Design details
The unique design of this foil allows you to surf small waves and ride back to the line up due too its great pumpability. It's top end speed and stability make this wing ideal for use with a windwing in 15+ knots.
The self controlled lift, due to the advanced inverted gull wing design, will give you a big smile while pumping and give you that extra drive to generate speed through your carves.
Ideal for small to medium waves.
Pack content:
* 1x M82 - Carbon Plate Mast 82
* 1x W790 - Carbon Front Wing 790
* 1x S450 - Carbon Stabilizer 450
* 1x FS710 - Fuselage 710
* 2x Socket Head Cap Screw M6x25 and washers
* 1x Flat Head Screw Torx M6x16
* 1x Flat Head Screw Torx M6x20
* 2x Flat Head Screw Torx M6x30
* 1x Flat Head Screw Torx M6x35
* Torx, hex tip, grease
* Instructions
Tech specs
| Base Plate Joint | 90x165 mm |
| Mast Height | 820 mm |
| Front Wing | 790 |
| Front Wing Span | 790 mm |
| Front Wing Root Chord | 246 mm |
| Front Wing Aspect Ratio | 4.3 |
| Front Wing Surface | 1550 cm2 |
| Stabilizer | 450 |
| Stabilizer Span | 450 mm |
| Stabilizer Root Chord | 85 mm |
| Stabilizer Aspect Ratio | 6.22 |
| Stabilizer Surface | 326 cm2 |
