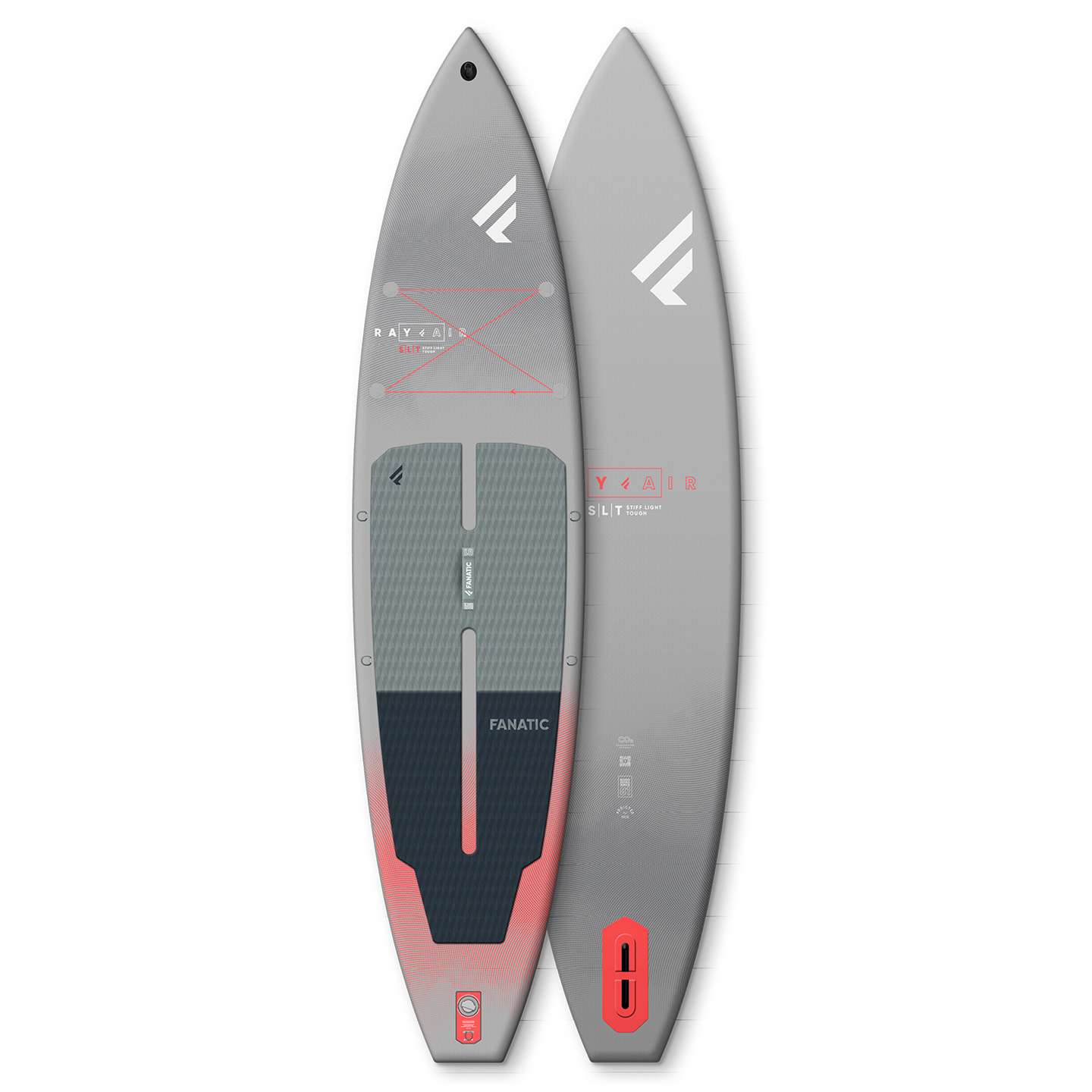

Fanatic Ray Air SLT Inflatable SUP 2025
IN A NUTSHELL...
The Fanatic Ray Air SLT is their inflatable touring SUP that has sleek lines and immense glide, making it the perfect iSUP for everyone paddling some distance exploring miles of coastline, lakes or channels.
Design details
SKU: 33250-1502
TOURING / FREERACING
Its generous volume and maximized waterline combine stability and great straight-line performance, while the optimized thickness offers additional rigidity for effortless paddling. With its minimal weight and dimensions nothing comes close the convenient handling of our RAY AIR S | L | T!
SIZE DOES MATTER! 20.25 marks a major update to our iSUP range. While our tried and tested shapes remain unchanged, we have completely overhauled the construction. It all started over 2 years ago with a big survey of our customers, asking them what the most important buying factors were. Although we already had a pretty good idea, the results were overwhelming. For over 90% only 2 things are important: weight and packing volume. With this focus, we developed a brand new material with our supplier. Instead of the industry-standard knitted material, we have switched to woven drop-stitch material for all our boards. This material is 20 % lighter but still even stiffer. Just as importantly, the woven material is much easier and more compact to roll. All panels are connected through welding now instead of glue. This not only means a significant improvement in durability, but also a considerable weight saving due to the elimination of the heavy adhesive. Finally, even the EVA deckpad has been optimized. The additional split in the middle further reduces the weight and ensures an even more compact roll-up. The end result is truly stunning, as our S | L | T boards are probably the lightest and most compact iSUPs on the market (up to 20% lighter than their predecessors with a packing volume reduced by around 40%).
Finally Fanatic have added a couple of brand-new features to their iSUP range:
- Additional D-rings in the back for optional seat attachment
- TOW + ACTION-CAM COMBO-MOUNT
- LASHING + SHOULDER COMBO-STRAP
Comes with: Fin | Gearbag Pocket | Repair Kit.
Key Features
S | L | T TECHNOLOGY
Stiff | Light | ToughOur industry-leading woven drop-stitch material make our boards 20 % lighter and 40% more compact to roll! Machine-welded rail-bands guarantee maximum durability and longevity.
Touring style shape
Fanatic’s Touring best-seller for effortless glide and efficiency
THE LIGHTEST AND MOST COMPACT BAG OUT THERE!
We have re-designed our bag as a pure backpack and reduced the weight by a whopping 50% or 1.5 kg!
LASHING + SHOULDER COMBO-STRAP
2-in-1 function: fixes the rolled-up board and can be used as a shoulder strap
Tech specs
Stiff | Light | Tough
Industry-leading woven drop-stitch material made to our specifications used for all our boards. This material is 20 % lighter but still even stiffer. Just as importantly, the woven material is much easier and more compact to roll.
The panels are sealed through machine-welding now instead of glue. This not only means a significant improvement in durability and longevity, but also a considerable weight saving due to the elimination of the heavy adhesive.
TOW + ACTION-CAM COMBO-MOUNT
For easy towing and to attach your favourite action camera or other accessory to your board.
POINTY NOSE
Results in a narrower nose and straighter outline for reduced drag and maximum paddle efficiency.
CARGO EXPANDER SYSTEM
4-point flat bungee system for easy and secure storage - everything stays where it should with these bungees.
EVA SPLIT DECK PAD
Surfboard-style EVA deck pad with proven diamond grooving for maximum grip and comfort.
The additional split in the middle further reduces the weight and ensures an even more compact roll-up.
ERGONOMIC SOFT HANDLE
EVA handle with soft-touch neoprene for easy carrying and transport.
ADDITIONAL D-RINGS
4 Additional marine grade stainless steel D-rings for optional kayak seat or shoulder strap attachment.
EVA KICK-PAD
For better grip and foot positioning in pivot turns. Prevents foot from slipping outside of the pad area during swift turns.
LEASH D-RING
Stay connected to your board with the integrated marine grade stainless steel leash D-Ring to reliably and safely attach your leash and stay firmly connected to your board.
VALVE
Marine boat quality valve for reliable inflation and airtightness even at high pressure. Push and turn for self-deflation.
NARROW SQUARE TAIL
The square tail shape allows for a super clean water release. Combined with the straight outline this results in lowest drag and maximum paddle efficiency.
US SPLIT-BOX
The center split allows for a much more compact roll-up size and reduces the weight by 20%.
LASHING + SHOULDER COMBO-STRAP
This strap fulfills 2 functions:
* Fixes the rolled-up board
* Used as a shoulder strap makes it effortless to carry the board to the water.
GEARBAG POCKET
The lightest and most compact bag out there!
The massive weight and package volume reduction of our new boards allowed us to complete redesign our bag as a pure backpack style. By eliminating the heavy rollers we have been able to reduce the weight by a whopping 50% or 1,5kg!
Combined with an unmatched compact size and a padded back and straps, it offers unrivaled comfort to explore your world.
Sizes and Specs
| BOARD | RAY AIR S|L|T 11'6" | RAY AIR S|L|T 12'6" |
| VOLUME (L) | 299 | 339 |
| LENGTH (IN / CM) | 11'6'' / 350.5 | 12'6'' / 381 |
| WIDTH (IN / CM) | 31" / 78.7 | 32'' / 81.3 |
| THICKNESS (IN / CM) | 6” / 15 | 6'' / 15 |
| TECHNOLOGY | S|L|T (Stiff-Light-Tough), welded | S|L|T (Stiff-Light-Tough), welded |
| WEIGHT (KG) (+/-5%) | 6.85 | 7.95 |
| PACKING VOLUME (L) | 38 | 45 |
| FITTINGS | 1 x US Split Box / 1 x Fin iSUP Race 23 / tow + action cam combo-mount / 4 D-Rings for optional seat attachment / lashing + shoulder combo-strap | 1 x US Split Box / 1 x Fin iSUP Race 23 / tow + action cam combo-mount / 4 D-Rings for optional seat attachment / lashing + shoulder combo-strap |
| REC. USER WEIGHT | Up to 100 kg | Up to 110 kg |
| MASTFOOT INSERT | No | No |
