Fanatic Aero High Aspect 1250 Foil 2021
The new Fanatic Aero High Aspect 1250 Foil, Fanatics fastest setup is good for riders between 60-95kg with advanced level
ARTICLE NUMBER 13200-3547 (WING SET 1250/250) / 13200-3511 (MAST & FUSELAGE SET 750/800) / 13200-3515 (MAST & FUSELAGE SET 900/800) *NOTE, WINGS ARE DELIVERED WITH INDIVIDUAL COVERS, MAST & FUSELAGE SET COMES WITH FOIL BAG
Efficiency and glide is what our new range of high aspect foils stands for. Developed specifically with Wing Foiling in mind, these new wings will take your foiling experience to the next level.
Our design team on Maui has spent months testing, analysing and refining countless high aspect hydrofoil designs during Wing Foiling freeride, race and surf sessions, as well as SUP Downwinders and Prone Foiling. The magic blend of efficiency, glide and speed combined with excitement and ease of use, when changing directions, led to a range of three new High Aspect front wings. Offering the lift and glide of a larger wing, with the speed of a smaller one – ideal for Wing Foiling at any level! Newly developed 250 and 300 back wings are the perfect match for these modern designs.
These new wings can be combined with our existing ultra rigid AL750 mast and AL800 or AL640 fuselage.

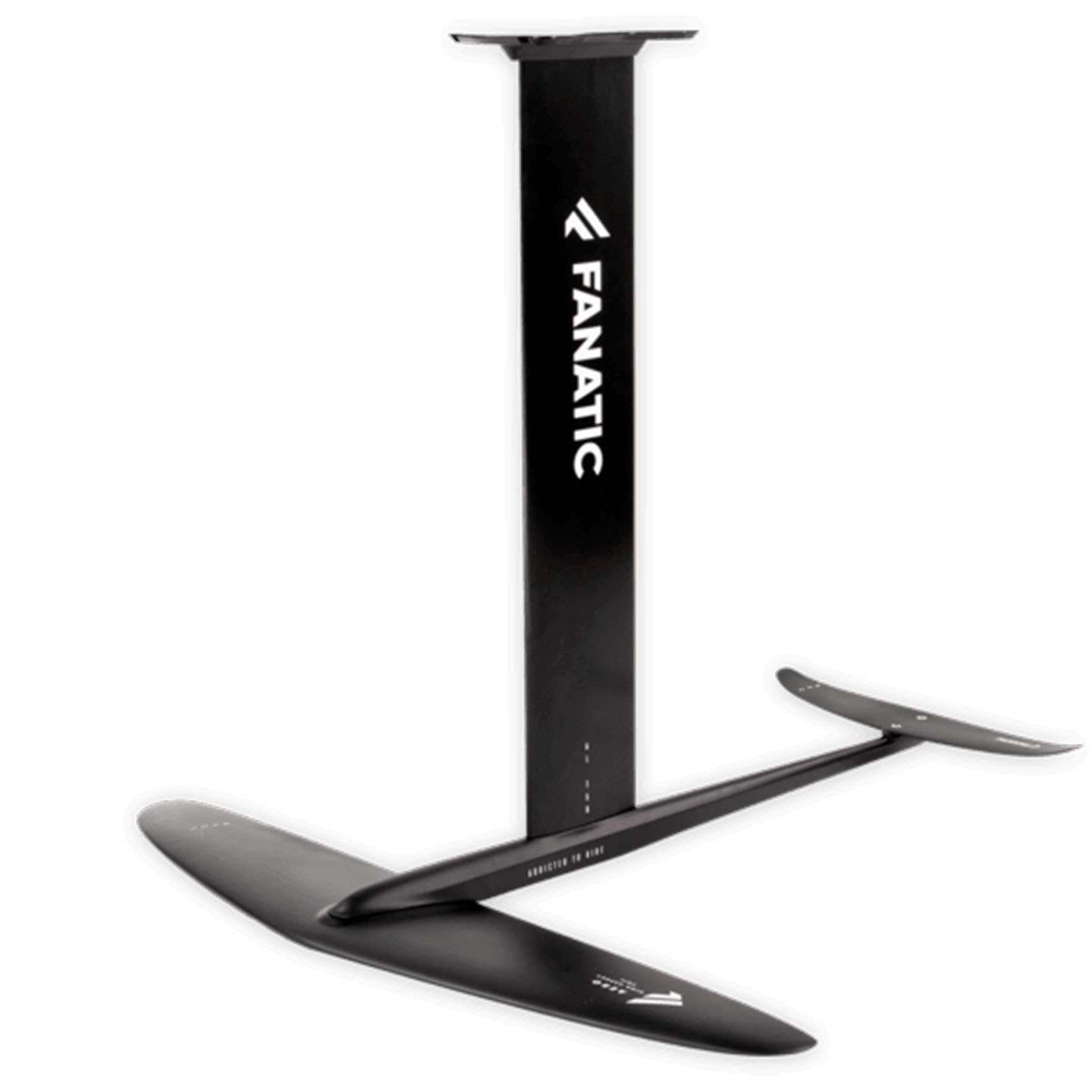

Aero High Aspect Foil 1250: 1250 HAR front wing / 250 back wing / 80cm AL fuselage / 75cm AL mast. Our fastest setup is good for riders between 60-95kg with advanced level
HIGH ASPECT DESIGNS Modern High Aspect designs with fast profiles and direct turning behaviour – developed specifically with Wing Foiling in mind
WINGS Carbon front and back wings with 30° layup for maximum performance with direct flex response and minimal weight
MAST Formula 1 aluminium fusion technology mast – made in Germany – with special profile and increased chord length for 30% higher stiffness compared to other AL masts
FUSELAGE AL Fuselage with extra large mounting area for bulletproof connections and maximum load spread
HELICOIL THREADS Helicoil-threads in mast and fuselage for longevity and maximum strength connections
GLUED AND SCREWED Glued and screwed connection of mast and base plate for extra rigid connection and maximum durability
WITHOUT POCKETS Fuselage > Wing connection without pockets – not getting stuck, no wearing out
FULLY INTERCHANGEABLE Wings and fuselages fully interchangeable for upgrades and tuning according to conditions and rider level
TRACK FOIL MOUNT Track foil mount base plate – allows tuning through the mounting position
BAG Foilbag for safe transport of your Aero Foil and all accessories, including covers for each individual part. Velcro patches keep all parts in place to avoid damage
*Note - Wings are delivered with individual covers, Mast & Fuselage set comes with Foil Bag
|Combo||Front Wing Size cm² Wingspan mm||Back Wing Size cm² Wingspan mm||Fuselage / Length||Mast / Length||Mast Mounting||Front Wing Screws||Back Wing Screws|
|Aero High Aspect Foil|
|1250 cm² / 900 mm||250 cm² / 415 mm||Alu / rec. 800 mm (alt.|
|Alu / 750 mm or 900 mm||Track Foil Mount||M8 x 30||M6 x 20|
