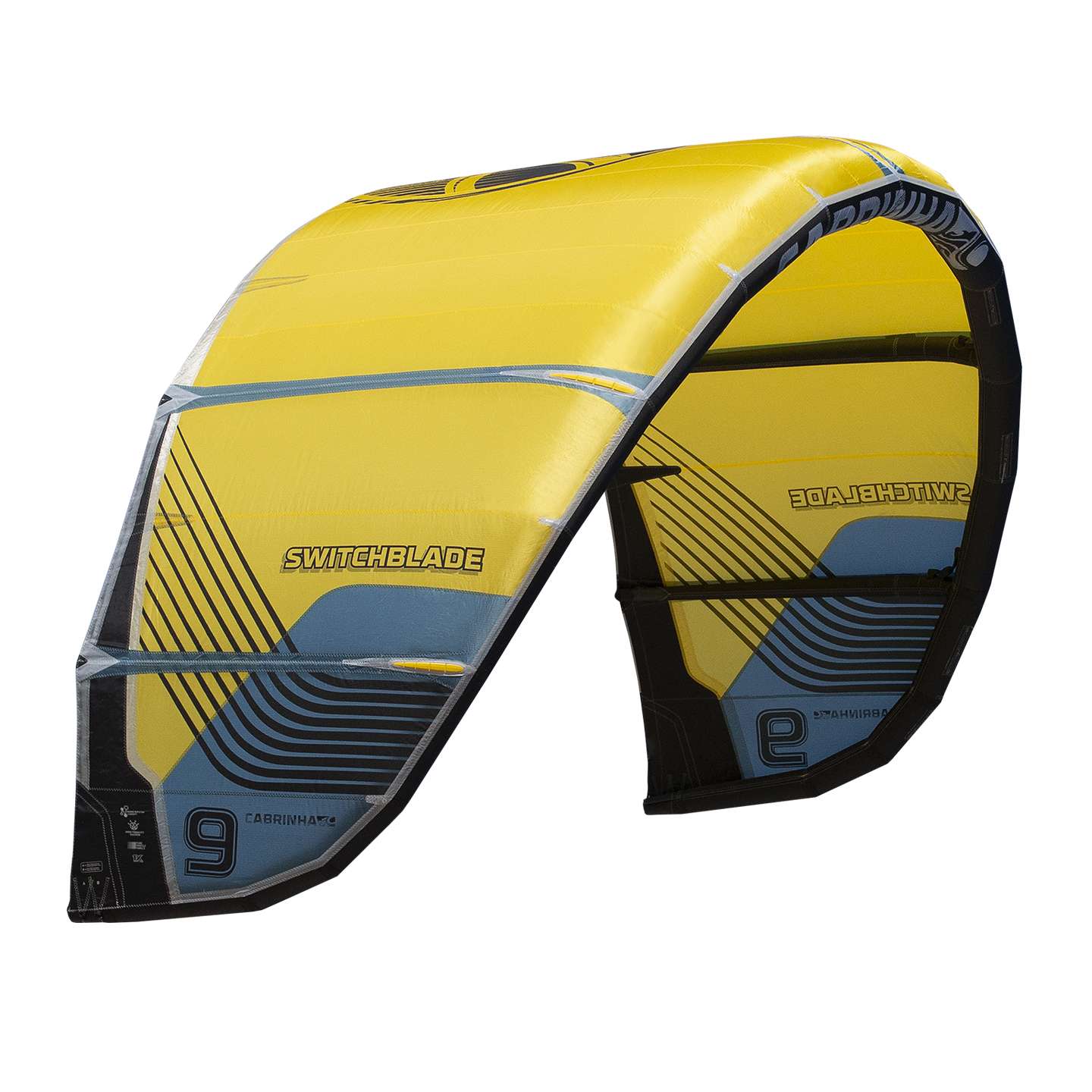

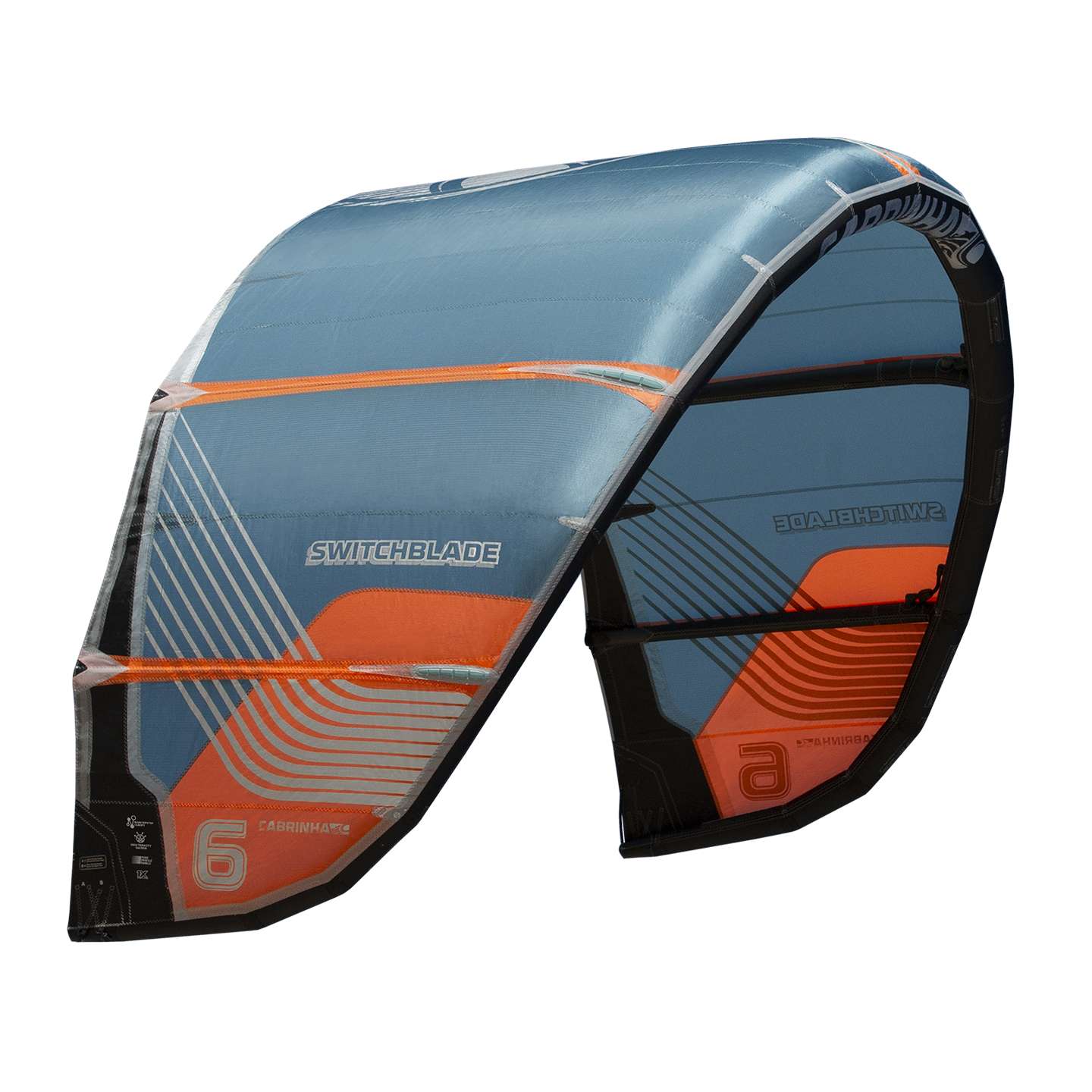

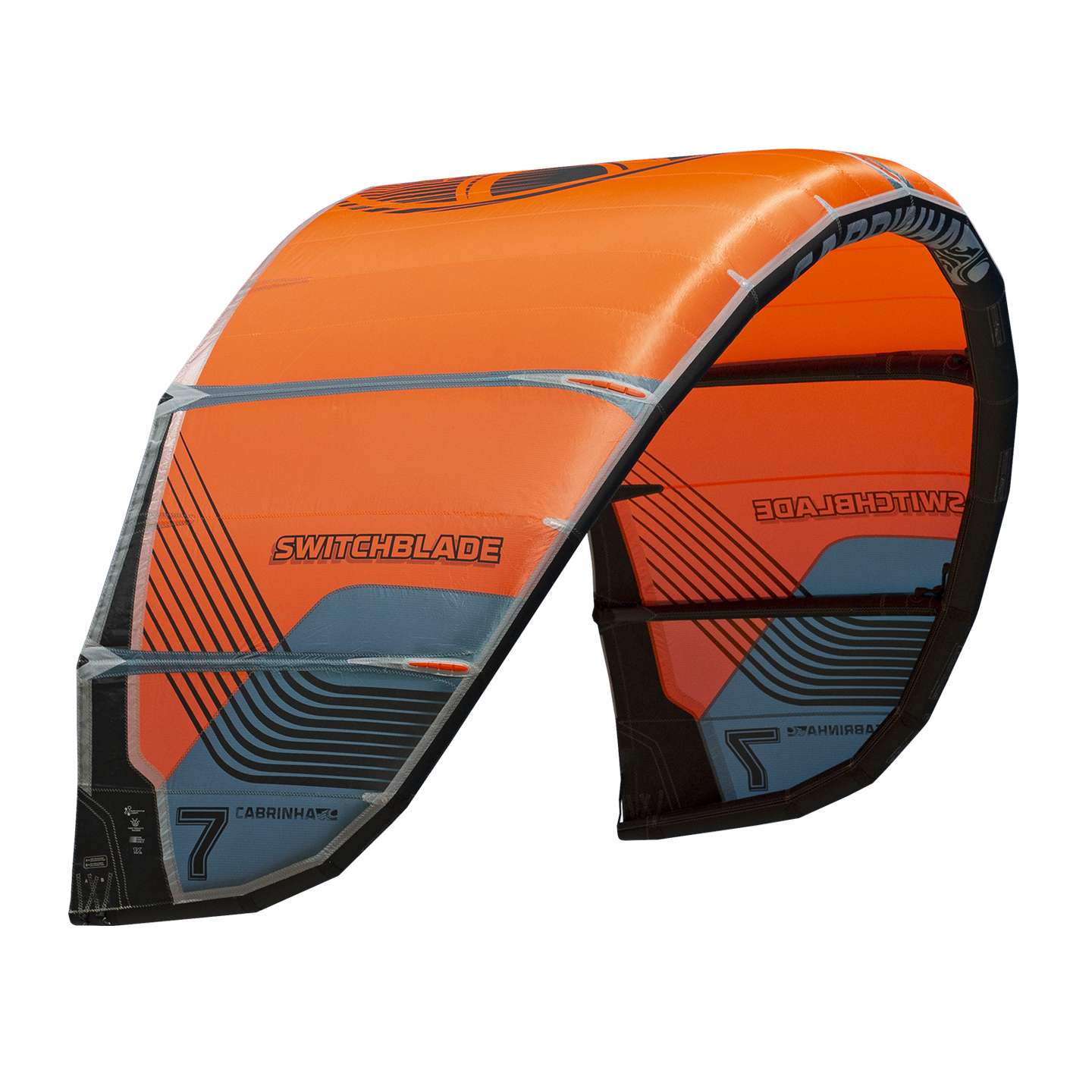

Cabrinha Switchblade 2020 Kite
The 2020 Cabrinha Switchblade’s reputation for being the world’s highest performance freeride kite not only comes from the thousands of customers who hail its praise, but from its long heritage of competition wins and records broken. If there is one kite that completely defines the essence of kiteboarding, it’s the Cabrinha Switchblade.
Colours are limited in certain sizes. If you have a colour preference please contact us
PERFORMANCE FREERIDE / BIG AIR
SIZES: 4 / 5 / 6 / 7 / 8 / 9 / 10 / 11 / 12 / 14
5 Strut, Hybrid design, Fusion wing tip shape, Draft forward profile
The discerning rider who values unrivaled predictability and uncompromising high end performance. For those that want style, power, performance and craftsmanship
But what’s most amazing about the Switchblade is that all this performance comes in one of the easiest to use packages. Its balance and power delivery make this kite light to the touch and simple to fly. Whether you are working on your freestyle game or testing your limits in getting incredible air, the Switchblade will deliver with a class of predictability and reliability that can not be found anywhere else.
- NEW Nano Ripstop canopy, the new bench mark in durability, stability & responsiveness
- NEW Optimized Dacron layout for reduced weight & improved handling characteristics
- High Tenacity Dacron for enhanced arc stability
- Strategic canopy reinforcements in the high stress areas
- Pure Profile Panels for efficient aerodynamics
- Ultimate performance in the widest range of conditions and variety of riding styles
- Ridiculously high hang times
- Large sweet spot and smooth on demand power control
- Excellent upwind performance
- Swept leading edge for effortless relaunch
- IKA Registered for sizes 7, 9 & 11
NANO RIPSTOP CANOPY
2020 catapults Cabrinha into the next generation of kite technology with our all new Nano Ripstop kite canopy material. A higher level of performance can only be achieved when the kite’s design properties are supported by a stable and reactive kite material. Nano Ripstop does just that.
COATING: Reduced Elongation - Better performance - Quicker material recovery
PLASMA TREATMENT: Better Stability - Longer lasting
NANO RIPSTOP WEAVE: Doubled tear strength - Increased durability
Nano Ripstop is a 55 g/m2 material with a 3mm double rip stop pattern. This micro rip stop material in unison with the newly developed coating, has given us a 2X increase in the canopy’s tear strength. A smaller rip stop pattern increases the amount of “cells” in any given panel.
The exclusive new coating has been engineered to deliver unprecedented durability and stability, giving you a crispier feel and increased canopy rigidity creating a higher performing kite.
The material’s stability is further locked into place by a process called Plasma treatment, unique to Cabrinha’s exclusive Nano Ripstop. Plasma treatment creates a hydrophilic surface for superior adhesion of the coating onto the unfinished greige material.
The result is a well balanced, stable cloth with greater longevity. Simply put, the coating will take longer to break down which keeps your kite feeling crisp and lively throughout the life of the kite.
NANO RIPSTOP CANOPY
A higher level of performance can only be achieved when the kite’s design properties are supported by a stable and reactive kite material. Nano Ripstop does just that.
HIGH TENACITY DACRON
Our Dacron is specifically designed for inflated kite structures. The construction of this material is very warp oriented using ultra high tenacity yarns with an increased thread count to combat elongation in the warp direction under high inflation pressures. Lower elongation makes for a more accurate kite with less deformation while in flight.
PURE PROFILE PANELS
The strategically placed panels provide ultimate control over the aerodynamic profiles in the kite. Smooth and stable profile entry. Improved overall kite efficiency, performance, and range. Faster flying through the sky giving you a broader range of performance.
Upon activation of 1X’s single line flagging system the power of a kite is immediately killed and it will rest motionless on the water or land.
Every Cabrinha kite comes with a simple, user adjustable way to choose the power level of the kite. Each rear line “pig tail” connector has three power positions you can connect to. The middle position is the factory recommended position. However, the user can choose to create more power by connecting the knot closest to the kite, or less power by connecting to the knot closest to the rider.
Provides the structure that keeps the kite design true to its intended shape while in-flight. The stable frame drives the kite through turbulence with a minimal amount of deformation and has excellent overall de-power. The inflated leading edge introduces the laminar flow of air across the kite’s Pure Profile panels, for a quick recovery if stalled and prevents the kite folding on itself. The inflatable structure reduces the amount of bridling required for stability. It also provides safety by providing some flotation in the water, and enables easy re-launch.
Dynamic arc allows the kite to have two distinct arc shapes. The arc of the kite takes on one shape while flying, and another shape while in resting mode on the water. While resting on the water the arc opens up slightly to facilitate an easier relaunch.
SPRINT SYSTEM W/ AIRLOCK
The Sprint inflation systems is the most efficient and easy way to get your kite inflated and deflated quickly. The enlarged Airlock valve quickly feeds air into all of the struts from a single location. The Airlock connection to the Sprint pump requires no special adapters. Once inflated, you can lock off each strut independently to keep your kite’s rigid frame, and isolate any accidental strut deflation from the rest of the kite. When the session is over, the entire kite will deflate in seconds thanks to the Airlock valve’s large dump feature.
WIND RANGE & BAR SIZE
