Axis Speed Rear Wings
IN A NUTSHELL...

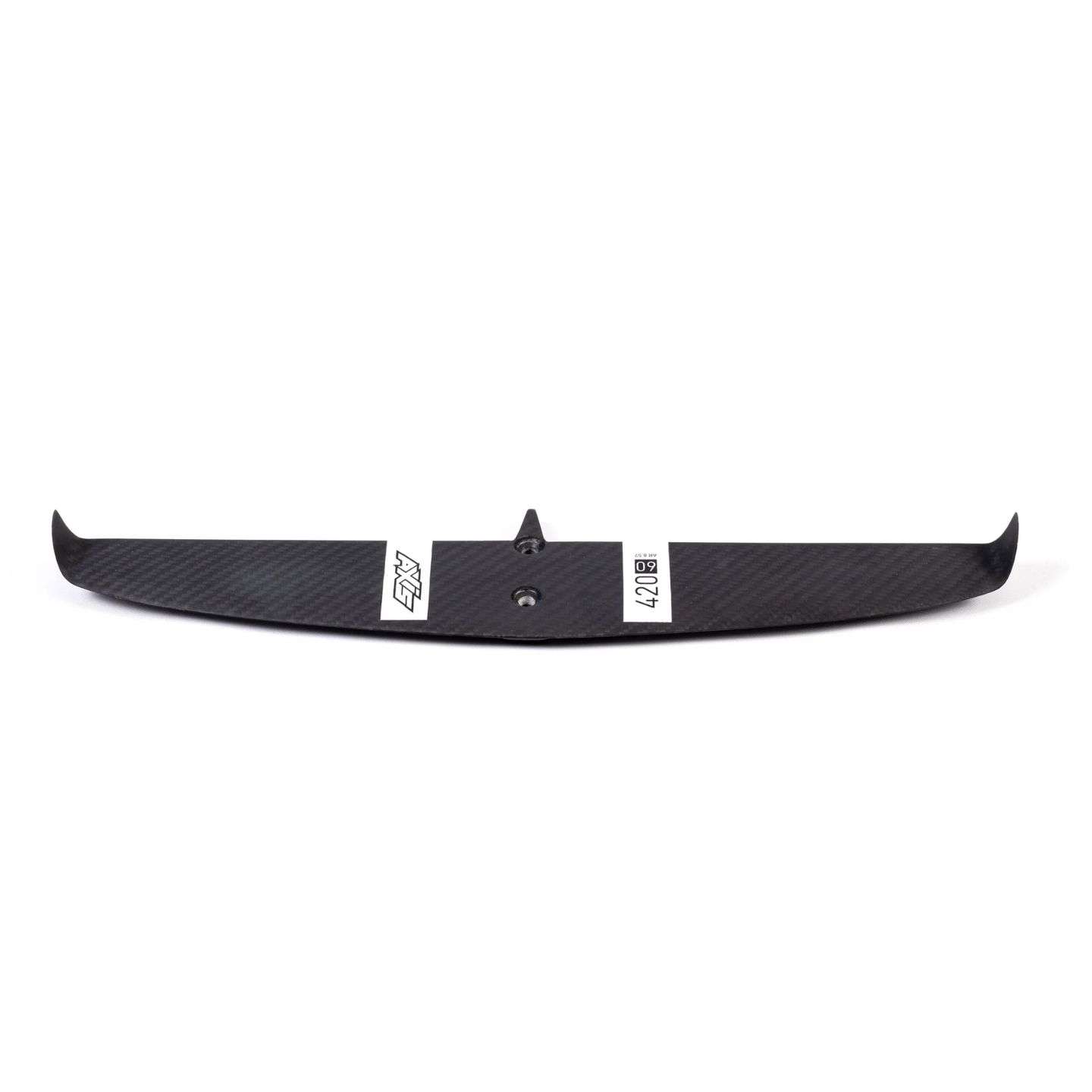

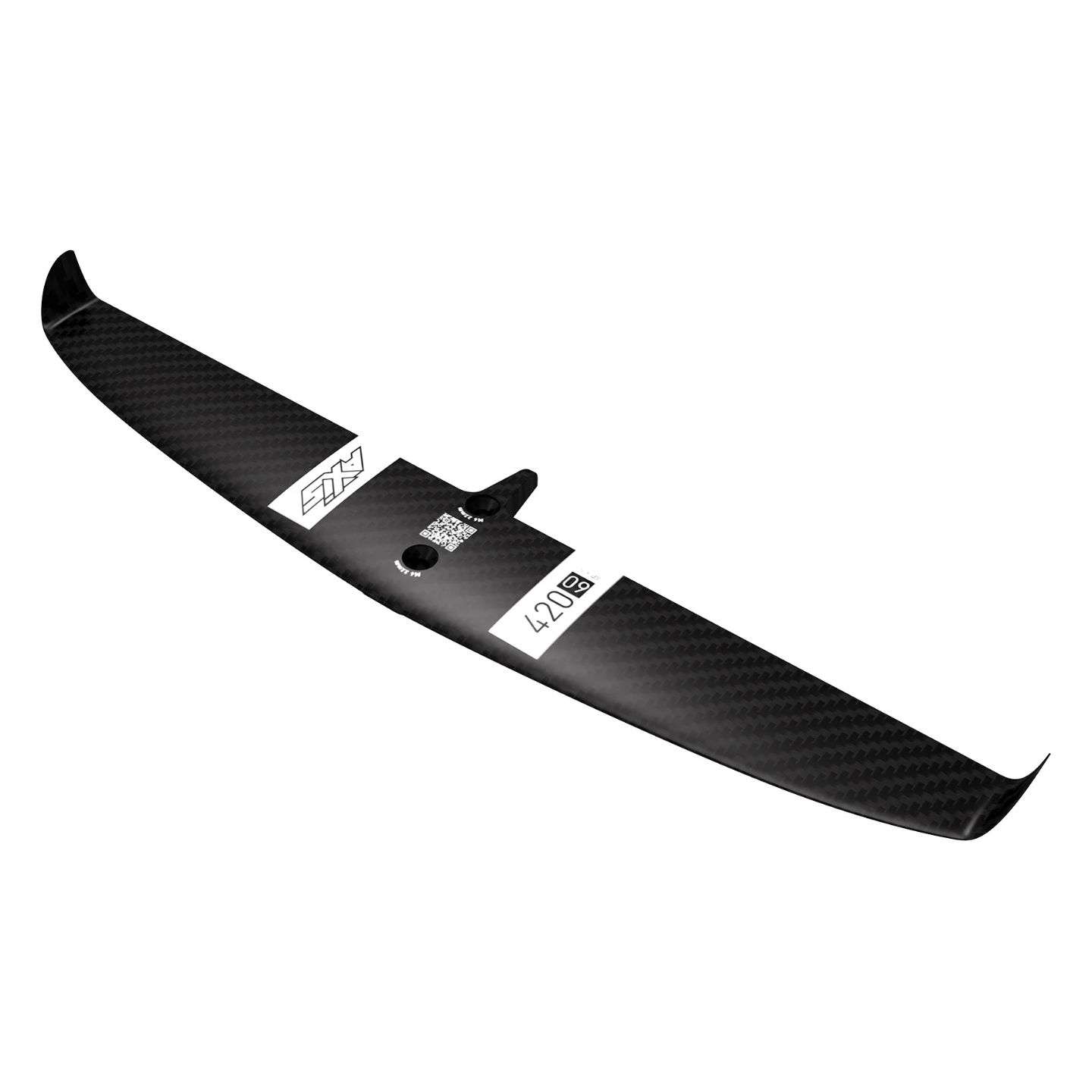

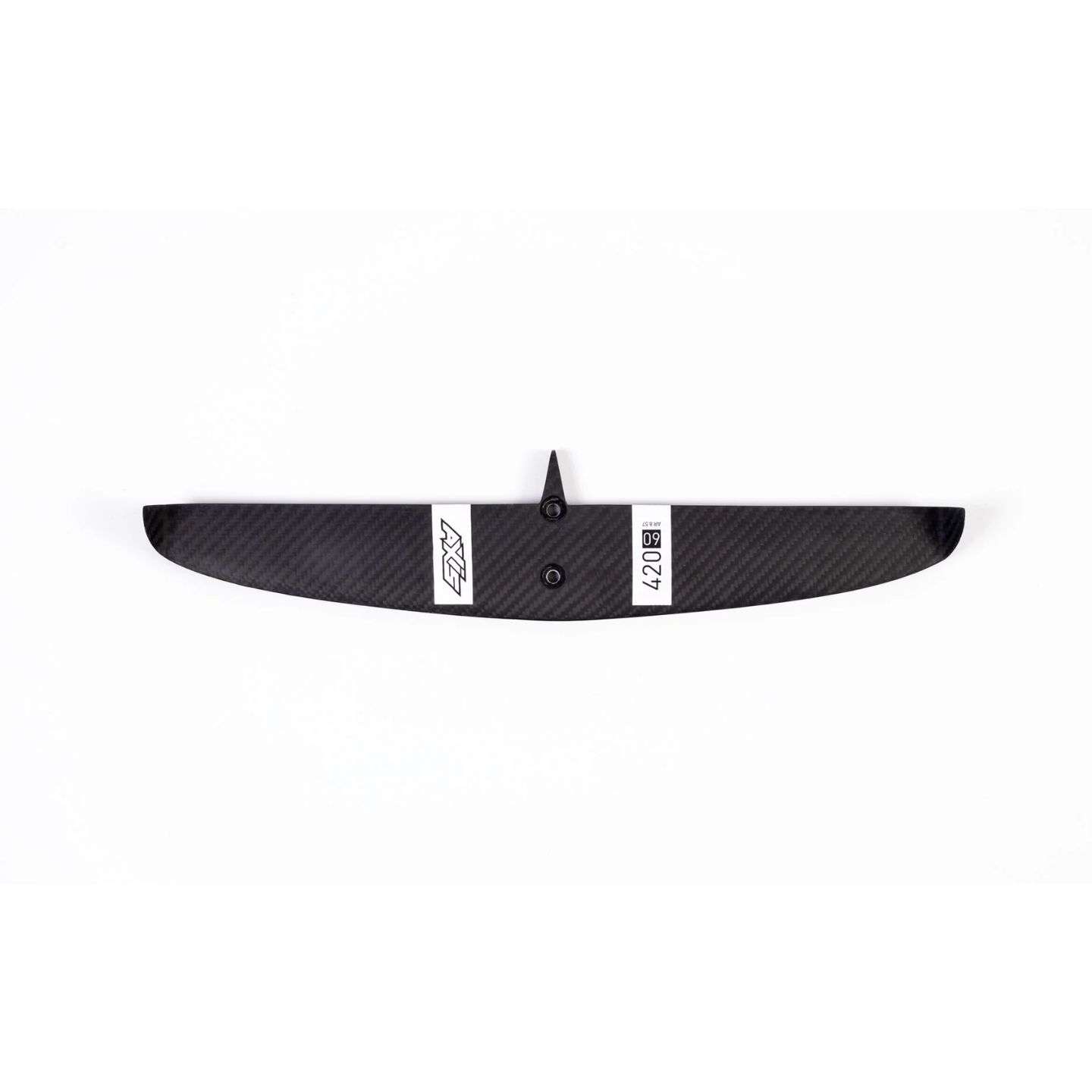

The Axis Speed Rear Wing is Axis' fastest rear wing range. Featuring an high Aspect Ratio, these stabilizers are designed for speed, while the addition of winglets ensures enhanced control during turns and carvings. It is particularly suited for performance-oriented foilers across various disciplines, including Prone, SUP, Wing, and Downwind foiling. The Speed rear wings are ideal for those seeking a high-speed setup that doesn't compromise on maneuverability.
Design details
SPEED
Built for speed, these rear wings will unlock the full speed of your front wing. These are for those looking to go as quick as possible, ideal for anyone racing and wanting to push the limits.
Tech specs

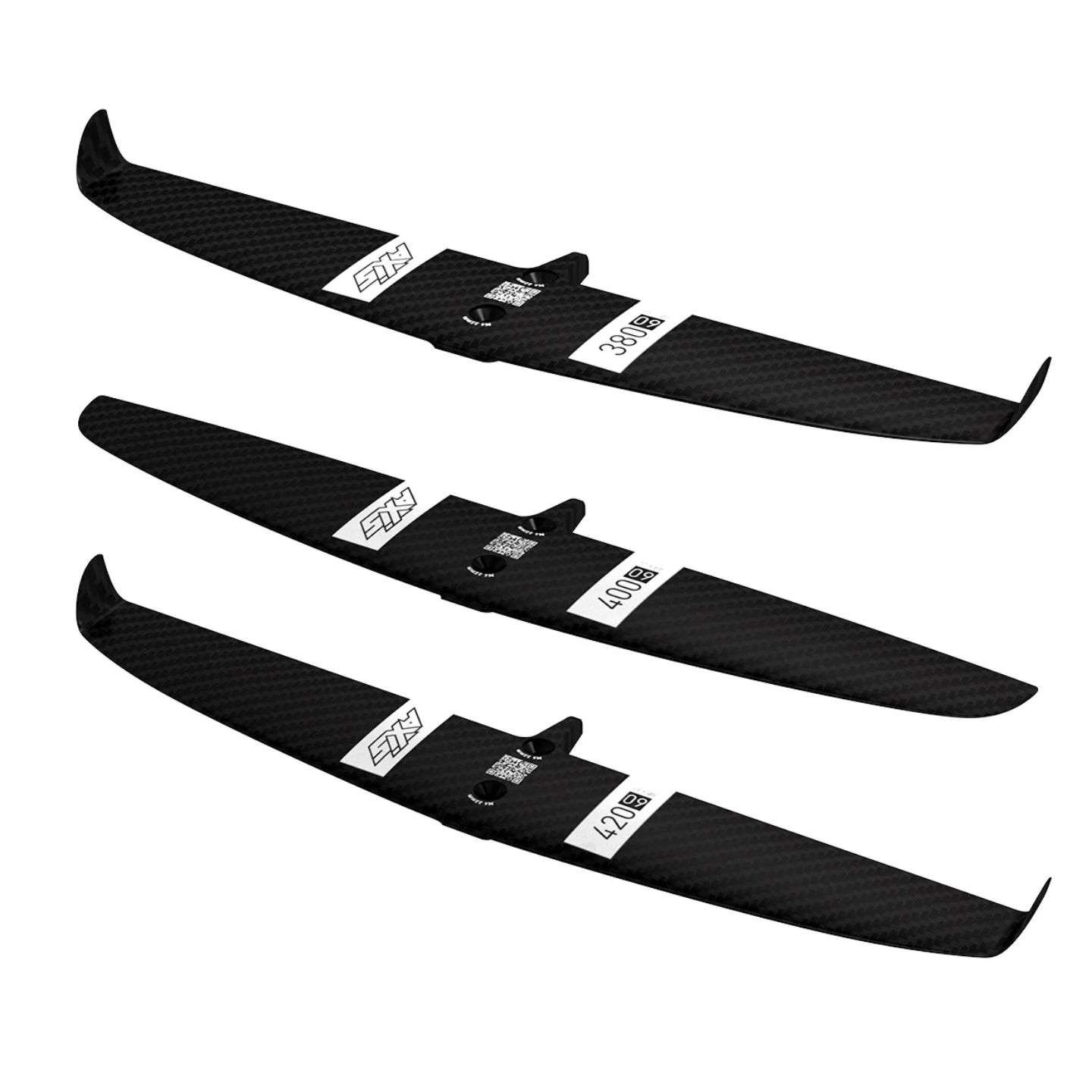

380 Speed Rear Wing
WINGSPAN: 380 mm / 14.96 in
CHORD: 60 mm / 2.36 in
ASPECT RATIO: 7.99
ACTUAL AREA : 193.04 cm² / 29.92 IN²
PROJECTED AREA: 180.62 cm² / 28 IN²
VOLUME: 69.11 cm³ / 4.22 IN³
400 Flat Speed Rear Wing
WINGSPAN: 400 mm / 15.75 in
CHORD: 60 mm / 2.36 in
ASPECT RATIO: 8.22
ACTUAL AREA : 196.24 cm² / 30.42 IN²
PROJECTED AREA: 194.66 cm² / 30.17 IN²
VOLUME: 70.77 cm³ / 4.32 IN³
420 Speed Rear Wing
WINGSPAN: 420 mm / 16.54 in
CHORD: 60 mm / 2.36 in
ASPECT RATIO: 8.57
ACTUAL AREA : 212.63 cm² / 32.96 IN²
PROJECTED AREA: 205.76 cm² / 31.89 IN²
VOLUME: 76.95 cm³ / 4.70 IN³
