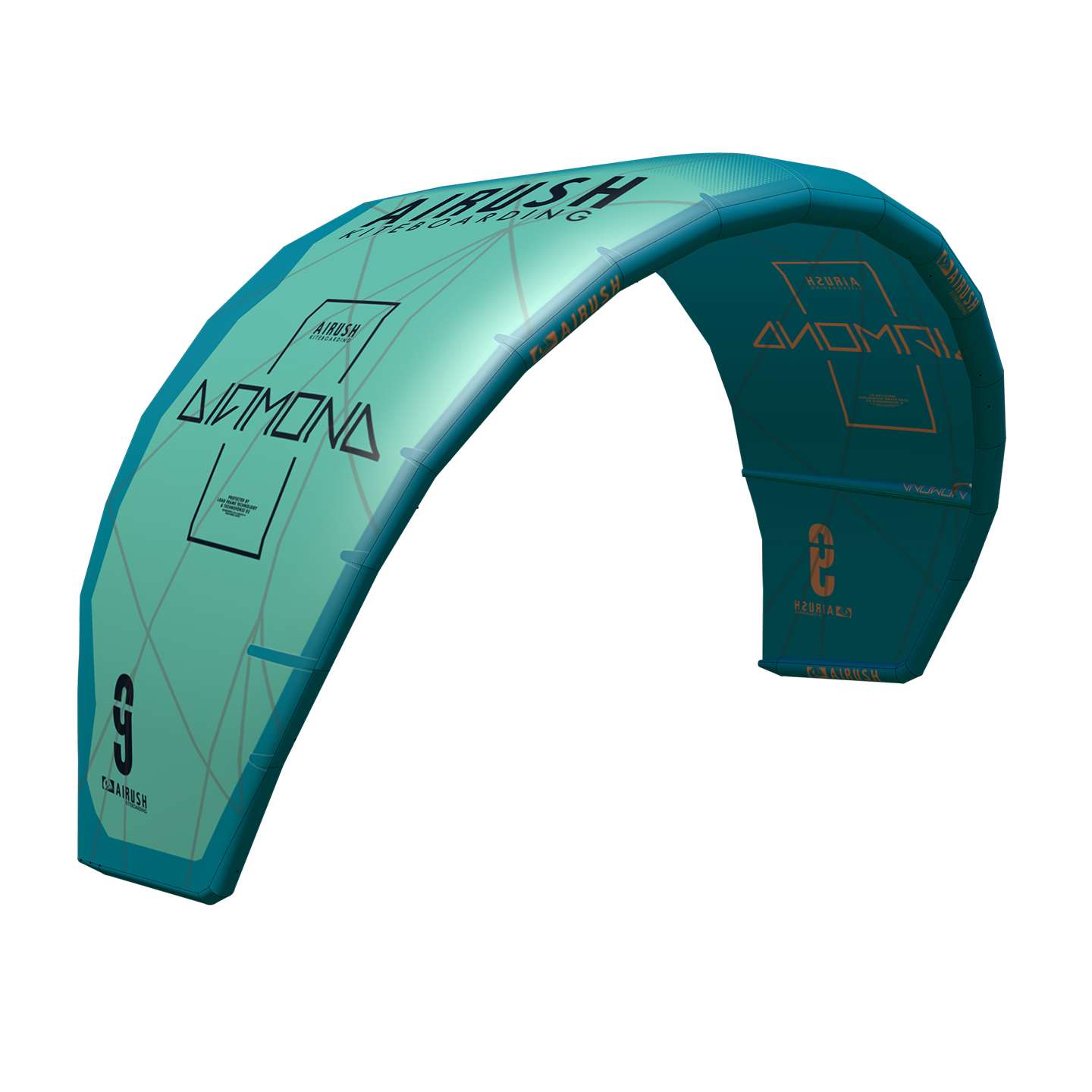

Airush Diamond V5 Kite
IN A NUTSHELL...
The 2020 Airush Diamond V5 kite features a refined profile and balanced configuration that appeals to a broad range of users from wave, foiling, and freeride, to freestyle. It is stable and user-friendly, yet responsive in both steering and power delivery. Even the lightest of riders can easily get the kite to the edge of the window in stronger conditions.
ALL AROUND FEMALE SPECIFIC PERFORMANCE
SIZES: 5.5 | 7 | 9 | 12m
- Versatile female-specific performance.
- Direct steering & swift depower.
- Stable with all-around ease of use.
Ideal for lighter riders.
AIRUSH LOAD FRAME v4 featuring WebTech
The Airush Load Frame featuring WebTech has been the key to setting the ultimate benchmark in durability, without compromising on weight.
By expanding our exclusive Load Frame with WebTech throughout the areas normally occupied by Dacron, we are able to minimize or completely remove the heavier fabric and utilize the Ballistic high-modulus polyethylene web fibers instead – increasing strength and minimizing weight.
INTEGRATED HIGH MODULUS POLYETHYLENE YARNS
Central to the concept of the Load Frame are the lightweight Ultra High Modulus yarns, of which each single yarn can carry 40kg. Think of them as a lightweight web with engineered energy absorption under load, similar to a spider web.
These yarns are integrated into the canopy through reinforced taping that allows them to elongate when under extreme load, absorbing most of the shock that traditionally would have run through the canopy. At the same time, they carry the primary load of the canopy, preventing stretch and increasing long-term performance.
This premium fabric is used in conjunction with the Airush Load Frame for the ultimate combination of durability and performance. Ongoing testing has highlighted the lowest stretch and UV Stability, along with the highest long-term reliability of any fabric available.
V3.2 BRIDLE SYSTEM
The V3.2 Bridle along with high sweep in the leading edge gives immense depower while allowing the kite to fly forward in the window when heading upwind or high apparent wind on your foil.
The Airush Pulleys are made of tough Zytel material for high strength and resistance to abrasion and impact, the Airush Pulley has the pigtails hole directionally correct to eliminate bridle wear. With a breaking strength of 550 kg, the Airush pulley was designed specifically for use on all Airush kites.
BAR PRESSURE ADJUSTMENT
All Airush bridled kites, excluding the Ultra and Wave kites, feature the Bar Pressure Adjustments on the leading edge of the kite. These options allow the rider to select the perfect amount of feedback and comfort in the bar while riding with simple and quick adjustments before your session!
XL INFLATE/DEFLATE VALVE
The XL inflate/deflate valve features an insanely easy and fast way to inflate and deflate your kite. The large opening creates maximum flow of air and reduces fatigue and stress on your pump. This in conjunction with the Airush high-velocity pump makes inflating your kite extremely fast to get you on the water as quickly as possible.
Airush bumpers are found throughout the leading edge of the kites to reduce wear and increase durability on rough surfaces. These bumpers are key for increasing the lifespan of Airush kites.
SPS & FBI
The oversized SPS valve (Single Point Inflation System) optimizes inflation and deflation. The Fast Bladder Inflation (FBI) features increased wall thickness and oversized diameter tubing, thus eliminating tube kink, reducing stress on your pump, and enabling quick and easy inflation. The SPS cover supports the tubing, further limiting UV damage to the material and preventing over flexing when packing.
REAR LINE ADJUSTMENT
The rear lines on the Diamond affect turning speed of the kite. By moving the rear lines towards the leading edge, the Diamond becomes static and stable, perfect for wakestyle moves. Moving the rear lines towards the trailing edge allows the Diamond to move faster, perfect for a bit of jumping.
Kevlar, found in bullet proof vests, is found throughout the Airush kites. These Kevlar Reinforcements are only put in the most critical areas to protect from wearing while still minimizing weight which affects the kites performance.
RECYCLED POLYESTER KITEBAG
Around 36 billion plastic bottles are produced every year, and more than 30% of non-recycled plastics will end up in the rivers or oceans. Consider this, and remember that these waterways are our playground. We have teamed up with one of the leaders in recycled plastic, and now we produce many of our kitebags and key accessories in collaboration with Waste 2 Wear.
Waste 2 Wear recycle 100% post-consumer plastic bottles into eco-friendly fabrics. This unique process involves turning environmentally damaging waste into useable, sustainable yarns. The recycled yarns are then combined with natural fibers to be woven or knitted into eco-friendly fabrics, suitable for garments, home textiles and accessories.
